Home / Long-Barrel Splice, 2.00 in. L, Pink

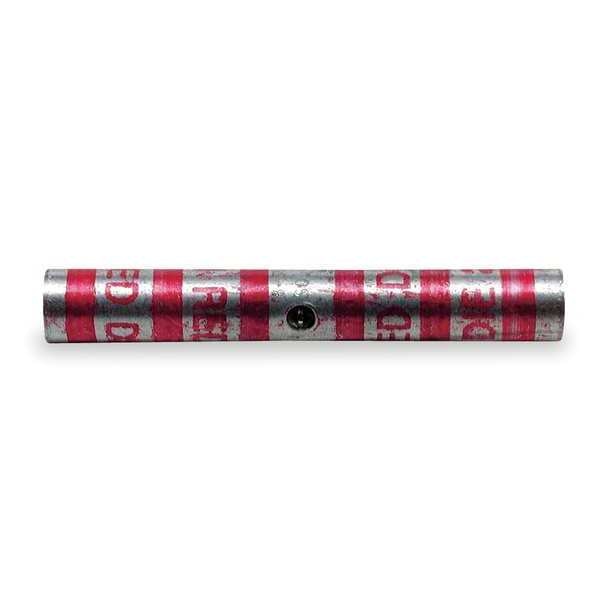

Long-Barrel Splice, 2.00 in. L, Pink

SKU
Brand Abb Installation Products
Categories
Description Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Pink, Die Code 42, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 1/0 AWG, Maximum Wire Size 1/0 AWG, Number of Crimps 2, Overall Length 2 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.54 in

Web Price

$11.24 / each

Qty

Product Details

Application Applications certified to 600 V and recommended up to 35 kVÃÂ¥

Barrel Finish Tin Plated

Barrel Outside Diameter 0.54 in

Barrel Size Long

Color Code Pink

Compatible with Product Type Copper Conductor

Contact Finish Tin

Contact Material Copper

Country of Origin (subject to change) Mexico

Die Code 42

Features Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.

Finish Tin-Plated

For Conductor Material Copper

For Wire Size 1/0 AWG

For Wire Type Class G, H, I, K, M

Insulation None

Length 2.0 in

Length (Straight Wireway) 2.0 in

Material Copper

Maximum Conductors 1

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV

Maximum Wire Insulation Diameter 0.54 in

Maximum Wire Size 1/0 AWG

Minimum Wire Size 1/0 AWG

Number of Crimps 2

Outside Dia. 0.54 in

Overall Length 2 in

Package Quantity 1

RoHS Compliant Yes

Seam Style Seamless

Special Features Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values

Standard UL E9809, CSA 4503

Standards CSA Certified, UL Listed

Surface protection Tinned

Termination Style Crimp

Type Splice Connector

Voltage Rating 600 V

Wire Gauge 1/0 AWG
