Home / Motor L-Disconnect, Female, 12-10 AWG, Ylw

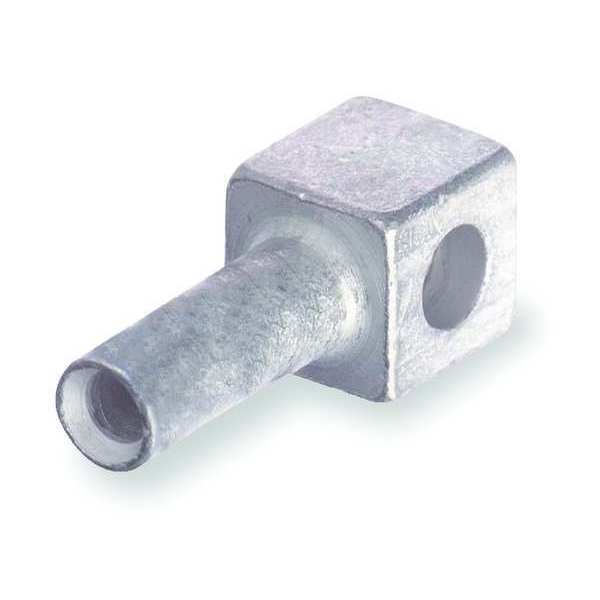

Motor L-Disconnect, Female, 12-10 AWG, Ylw

SKU
Brand Abb Installation Products
Categories
Description Motor Lead Disconnect, Body Size 2, Color Code Yellow, Die Code 42, Gender Female, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Pigtail, Finish Tin Plated, Standards UL E9809, Compatible Grainger Part Number 3KH45, 3KH46, 3KH52, 4XMR6, Compatible Manufacturer Model Number ERG4002, WT111M, WT112M, WT2000, Connection Orientation Pigtail, Connector Type Pigtail Connector
graingerSKU: , mscSKU: , zoro_no: G0898046, mongo_id: 65bbe94f22d7a989a994a22e

Web Price

$64.49 / each

Qty

Product Details

A (inches) 0.5

Application Tools WT112M, WT111M, WT2000, ERG4002

B (inches) 0.5

Body Size 2

Boot Insulation MDBOOT2

C (inches) 0.9

Color Code Yellow

Compatible Manufacturer Model Number ERG4002, WT111M, WT112M, WT2000

Connection Orientation Pigtail

Connector Type Pigtail Connector

Country of Origin (subject to change) Mexico

D (inches) 1

Die Code 42

Die Color Yellow

E (inches) 0.5

F (inches) 0.37

Features Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.; Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.; Female disconnects equipped with beryllium copper louvered contact bands for dependable connections.; Application Tools: WT112M, WT111M, WT2000, ERG4002

Finish Tin Plated

For Wire Size 10 AWG

Gender Female

Male/Female Female

Material Copper

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 10 AWG

Minimum Wire Size 12 AWG

Overall Depth 1/2 in

Overall Length 29/32 in

Overall Width 1/2 in

Package Quantity 1

Plug Length Not Applicable

Plug OD Not Applicable

Plug Outside Dia. 0.5 in

Special Features Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.

Standards UL E9809

Strip Length 3/8 in

Strip Length (inches) 44993

Style Female

Termination Style Pigtail

Type Motor Lead Female Disconnect

Voltage Rating 600V

Wire Gauge 12 to 10 AWG

Wire Size 12-10 AWG

Wire Size Range 12 AWG - 10 AWG

Wire Strip Length 3/8 in
