Home / Motor L-Disconnect, Female, 16-14 AWG, Blue

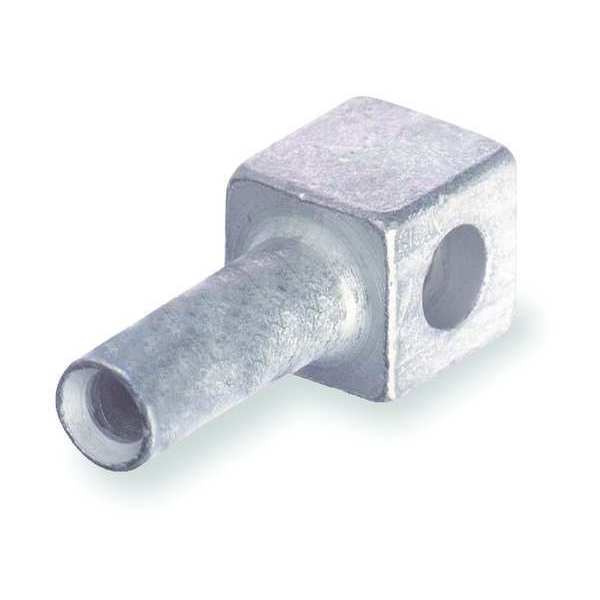

Motor L-Disconnect, Female, 16-14 AWG, Blue

SKU
Brand Abb Installation Products
Categories
Description Motor Lead Disconnect, Body Size 0, Color Code Blue, Die Code Not Applicable, Gender Female, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Pigtail, Finish Tin Plated, Standards UL E9809, Compatible Grainger Part Number 3KH45, 3KH46, 3KH52, 4XMR6, Compatible Manufacturer Model Number ERG4002, WT111M, WT112M, WT2000, Connection Orientation Pigtail, Connector Type Pigtail Connector

Web Price

$38.94 / each

Qty

Product Details

Body Size 0

Color Blue

Color Code Blue

Compatible Manufacturer Model Number ERG4002, WT111M, WT112M, WT2000

Connection Orientation Pigtail

Connector Type Pigtail Connector

Country of Origin (subject to change) Mexico

Die Code Not Applicable

Features Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.; Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.; Female disconnects equipped with beryllium copper louvered contact bands for dependable connections.; Application Tools: WT112M, WT111M, WT2000, ERG4002

Finish Tin Plated

For Use With 3KH45, 3KH46 and 3KH52

For Wire Size 14 AWG

Gender Female

Male/Female Female

Material Copper

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 14 AWG

Minimum Wire Size 16 AWG

Overall Depth 1/4 in

Overall Length 5/8 in

Overall Width 1/4 in

Package Quantity 1

Plug Length Not Applicable

Plug OD Not Applicable

Plug Outside Dia. 0.25 in

Special Features Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.

Standard UL E9809

Standards UL E9809

Strip Length 3/8 in

Termination Style Pigtail

Type Motor Lead Female Disconnect

Wire Gauge 16 to 14 AWG

Wire Size Range 16 AWG - 14 AWG

Wire Strip Length 3/8 in
