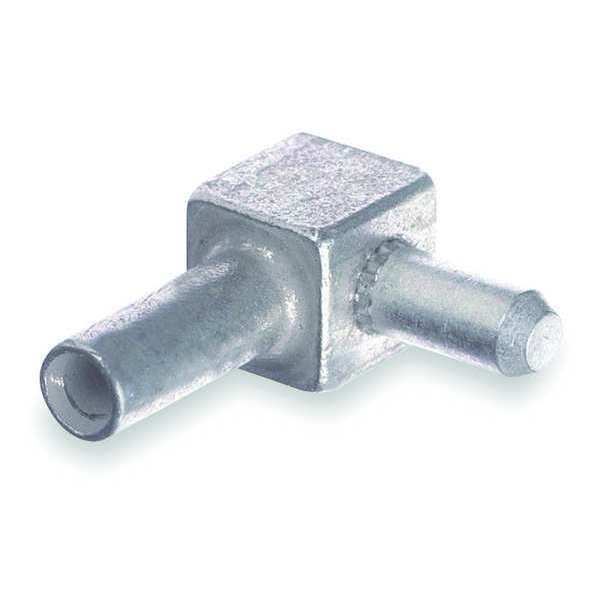

Motor Lead Disconnect, Male, 3/0 AWG, Ornge

SKU
Brand Abb Installation Products
Categories
Description Motor Lead Disconnect, Body Size 3, Color Code Orange, Die Code 50, Gender Male, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Termination Style Pigtail, Finish Tin Plated, Standards UL E9809, Compatible Grainger Part Number 3LT12, 3LT13, 3LT16, Compatible Manufacturer Model Number TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S, Connection Orientation Pigtail, Connector Type Pigtail Connector, Number of Wires 2

Web Price

$73.74 / each

Qty

Minimum order: 3

Product Details

A (inches) 0.88

Application Tools TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S

B (inches) 0.88

Body Size 3

Boot Insulation MDBOOT3

C (inches) 1.71

Color Code Orange

Compatible Manufacturer Model Number TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S

Connection Orientation Pigtail

Connector Type Pigtail Connector

Country of Origin (subject to change) Mexico

D (inches) 1.75

Die Code 50

Die Color Orange

E (inches) 0.88

F (inches) 0.5

Features Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.; Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.; Application Tools: TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S

Finish Tin Plated

For Wire Size 3/0 AWG

Gender Male

Male/Female Male

Material Copper

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 3/0 AWG

Minimum Wire Size 3/0 AWG

Number of Wires 2

Overall Depth 7/8 in

Overall Length 1 23/32 in

Overall Width 1 3/4 in

Package Quantity 1

Plug Length 1.71 in

Plug OD 0.5 in

Plug Outside Dia. 0.5 in

Special Features Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.

Standards UL E9809

Strip Length 11/16 in

Strip Length (inches) 45246

Style Male (One Load)

Termination Style Pigtail

Type Motor Lead Male Disconnect

Voltage Rating 600V

Wire Gauge 3/0

Wire Size 3/0 AWG

Wire Size Range 3/0 AWG - 3/0 AWG

Wire Strip Length 11/16 in
