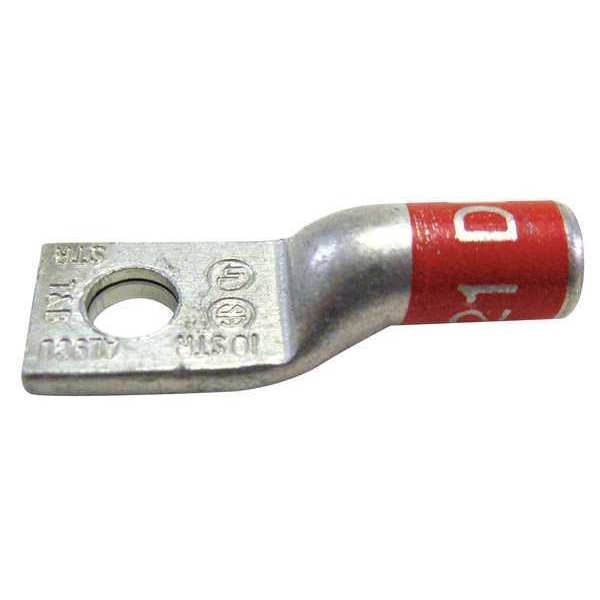

One Hole Lug Compression Connectr, 10 AWG

SKU
Brand Abb Installation Products
Categories
Description One-Hole Lug Compression Connector, Barrel Size Long, Color Code Red, Die Code 21, Tongue Angle Straight, Tongue Width 0.41 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Maximum 10 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Standards CSA Certified, UL E9809, Number of Holes 1, Barrel Outside Diameter 0.27 in, Connector Type Straight Barrel

Web Price

$7.11 / each

Qty

Product Details

AWG size 10

Barrel Length Long

Barrel Outside Diameter 0.27 in

Barrel Size Long

Cable Size 10 AWG

Color Red

Color Code Red

Connecting angle 180ÃÂ° (horizontal)

Connector Type Long Barrel

Construction Wrought Aluminum

Contact Finish Tin

Country of Origin (subject to change) Mexico

Die Code 21

For Conductor Material Copper

For Stranded Aluminum Wire Size - Maximum 10 AWG

For Stranded Copper Wire Size - Maximum 10 AWG

For Stud Size #10

For Wire Size 10 AWG

For Wire Type Solid, Stranded

Hole Center to Center Not Applicable

Hole Center to End 0.203 in

Inspection Hole No

Insulated No

Insulation None

Length 1.09

Length (Straight Wireway) 0.51 in

Material Electro-Tin Plated High-Conductivity Wrought Aluminum

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 35 kV AC

Number Of Holes 1

Number of mounting holes 1

Overall Length 0.51 in

Overall Width 0.09 in

Package Quantity 1

Peep Hole No

Plate Material Electro Tin

Product Name LUG TERMINAL

Product Type Long Barrel

Special Features Easily Matched to the Correct Blackburn, Filled With High Temperature Oxide-Inhibitor Compound, Long Compression Areas Ensure Complete Contact

Standard UL E9809

Standards CSA Certified, UL E9809

Stud Size #10

Surface protection Tinned

Tongue Angle Straight

Tongue Length 0.56 in

Tongue Style Standard

Tongue Width 0.41 in

Tongue Width Ranges 0.26 - 0.50 inches

Voltage Rating 35 kV

Width 0.41

Wire Size Range 10 AWG
