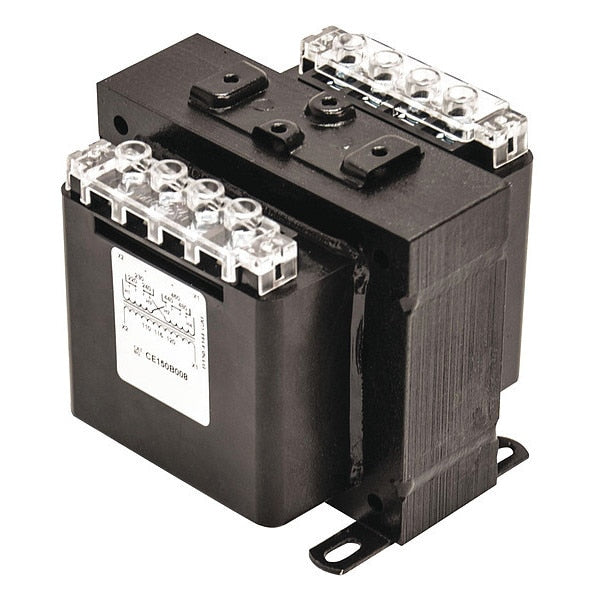

Control Transformer, 300VA Rating

SKU
Brand Acme Electric
Categories
Description Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 300 VA, Protective Device None, Enclosure Style - Transformer Finger-Safe, Open, Mounting - Transformer Foot, Plate, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise Not Rated, Enclosure Finish Epoxy Resin Varnish
graingerSKU: 491Z45, mscSKU: , zoro_no: G2134205, mongo_id: 65bbe7063aaddbd5a906b988

Web Price

$287.49 / each

Qty

Product Details

Application Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.

Carton Quantity 1

Certified Listed UL ListedcUL Listed

Construction Encapsulated

Country of Origin (subject to change) Mexico

Depth 4 in

Enclosure Finish Epoxy Resin Varnish

Enclosure Style - Transformer Finger-Safe, Open

Features Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency

Frequency Rating 50/60 Hz

Height 4.38 in

Hz - Electrical 50 Hz, 60 Hz

Input Voltage - Transformer 240V AC, 480V AC

Item - Transformer Control Transformer

Manufacturers Warranty Length 20 yr

Mounting - Transformer Foot, Plate

Output Voltage - Transformer 24V AC

Package Quantity 1

Pallet Quantity 72

Phase - Electrical 1

Protective Device None
