Home / Bulk Hose, 1/4 In ID x 25 Ft, 3000 PSI

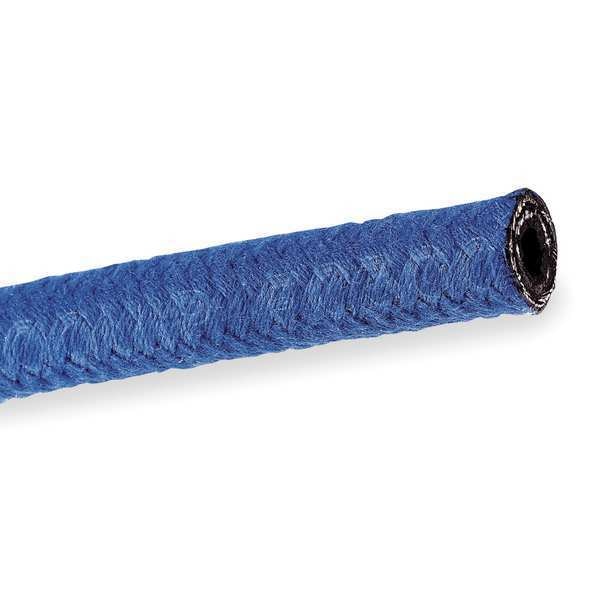

Bulk Hose, 1/4 In ID x 25 Ft, 3000 PSI

SKU
Brand Aeroquip
Categories
Description Hydraulic Hose, Hose Inside Dia. 1/4 in, Hose Outside Dia. 2 35/64 in, Hose Length 25 ft, Hose Tube Material AQP Elastomer, Hose Cover Material Polyester, Hose Reinforcement Type Braid, Hose Reinforcement Material Polyester, Hose Color Blue, Series FC300, Max. Working Pressure @ 70 F 3,000 psi, Safety Factor 4:1, Temp. Range -55 Degrees to 302 Degrees F, Standards ABS, DNV, DOT 106 TYPE All, J1019, J1402, SAE 100R5, USCG/MMT, Hose Configuration Bulk Hose

Web Price

$376.24 / each

Qty

Product Details

Application Petroleum Based Hydraulic Fluids, Air, Gasoline, Fuel and Lubricating Oils, Fire Resistant Hydraulic Fluids and Other Industrial Fluids

Compatible Chemicals Air, Automatic Transmission Fluid, Brake Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil , Motor Oil, Salt Water, Solvents

Country of Origin (subject to change) United States

Cover Material Blue Polyester Braid

Dash Size 5

For Media Type Air, Automatic Transmission Fluid, Brake Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil , Motor Oil, Solvents, Water

Hose Color Blue

Hose Configuration Bulk Hose

Hose Cover Material Polyester

Hose Inside Dia. 1/4 in

Hose Inside Dia. (In.) 1/4

Hose Length 25 ft

Hose Length (Ft.) 25

Hose Outside Dia. 2 35/64 in

Hose Outside Dia. (In.) 0.58

Hose Reinforcement Material Polyester

Hose Tube Material AQP Elastomer

Max. Working Pressure @ 70 F 3,000 psi

Min. Bend Radius (In.) 3-3/8

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Antifreeze (Coolant), Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)

Operating Pressure (PSI) 3000

Package Quantity 1

Reinforcement Single Wire Braid

Safety Factor 4:1

Series FC300

Standards ABS, DNV, DOT 106 TYPE All, J1019, J1402, SAE 100R5, USCG/MMT

Temp. Range -55 Degrees to 302 Degrees F

Temp. Range (F) -55 To 302

Tube Material Polyethylene

Type Hydraulic

Vacuum Rating (Inches Hg) 28
