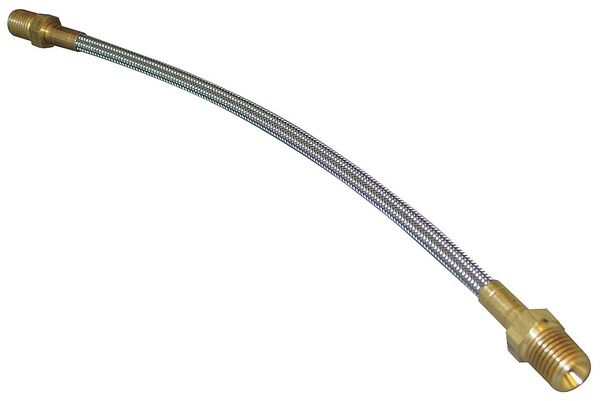

Flexible Hose Assembly, 1/8 In, 24 In L

SKU
Brand Aeroquip
Categories
Description Flexible Hose Assembly, Hose Inside Dia. 3/16 in, Hose Length 24 in, Hose Tube Material PTFE, Hose Cover Material 301 Stainless Steel, Max. Working Pressure @ 70 F 3,000 psi, Temp. Range -65 Degrees to 450 Degrees F, Standards PTFE Tube-FDA, SAE 100R14, Hose Fitting A Size 1/8 in, Hose Fitting B Size 1/8 in, Hose Fitting A Material Brass, Hose Fitting B Material Brass, Hose Fitting A Type MNPT, Hose Fitting B Type MNPT
graingerSKU: , mscSKU: , zoro_no: G2275262, mongo_id: 65bbea2822d7a989a9999a86

Web Price

$34.61 / each

Qty

Product Details

Braid Material Stainless Steel

Compatible Chemicals Acetone, Adhesives, Air, Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, Carbon Dioxide, Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Isopropyl (Isopropanol), Lithium Grease, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Mineral Oil , Motor Oil, Paint, Paint Thinner, Salt Water, Sodium Bisulfate, Sodium Bisulfite, Solvents, Steam, Toluene, Turpentine, Vegetable Oil, Windshield Washer Fluid, Xylene

Country of Origin (subject to change) United States

Dia. (In.) 3/16

Dynamic Min. Bend Radius (In.) 2

Fitting Material Brass x Brass

Fitting Size 1/8 in x 1/8 in

Fitting Type MNPT x MNPT

For Media Type Ketones, Ethanol, Isopropanol, Antifreeze, Ethylene Glycol, Gasoline, Diesel Fuel, Hydraulic Fluid, Toluene, Xylene, Water, Motor Oil, Methyl Chloride, Sodium Bisulfate, Sodium Bisulfite, Automatic Transmission Fluid, Brake Fluid, Lithium Grease, Paint, Paint Thinner, Turpentine, Windshield Washer Fluid, Adhesives, Air, Carbon Dioxide, Fuel Oil, Lubricated Air, Mineral Oil , Steam, Vegetable Oil, Solvents

Hose Cover Material 301 Stainless Steel

Hose Fitting A Material Brass

Hose Fitting A Size 1/8 in

Hose Fitting A Type MNPT

Hose Fitting B Material Brass

Hose Fitting B Size 1/8 in

Hose Fitting B Type MNPT

Hose Fittings Brass 1/8 in MNPT x Brass 1/8 in MNPT

Hose Inside Dia. 3/16 in

Hose Length 24 in

Hose Material PTFE

Hose Tube Material PTFE

Length (In.) 24

Max. Temp. (F) 450

Max. Working Pressure (PSI) 3000

Max. Working Pressure @ 70 F 3,000 psi

Not Recommended Chemicals Acetic Acid 20%, Chromic Acid 10%, Chromic Acid 5%, Citric Acid 50%, Fertilizers, Formic Acid, Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Hydrogen Peroxide, Methyl (Methanol), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution)

Package Quantity 1

Pipe Size (In.) 1/8

Standards PTFE Tube-FDA, SAE 100R14

Static Min. Bend Radius (In.) 2

Temp. Range -65 Degrees to 450 Degrees F

Type Smooth Bore
