Home / Hose, High Pressure, 6ft

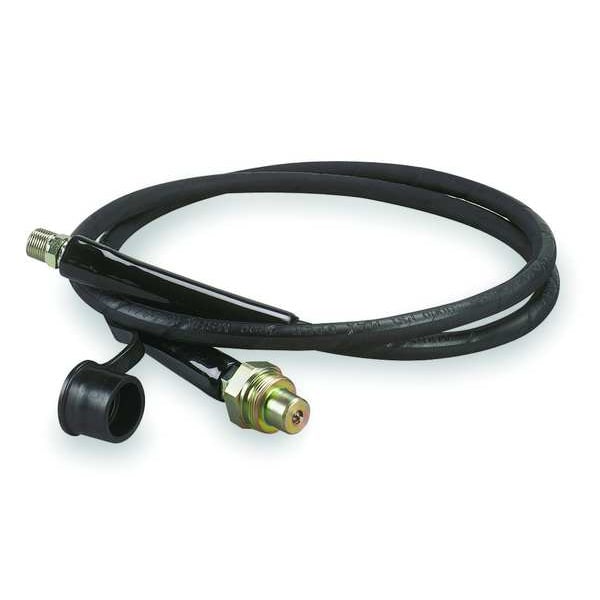

Hose, High Pressure, 6ft

SKU
Brand Aeroquip
Categories
Description Hydraulic Hose Assembly, Hose Inside Dia. 1/4 in, Hose Length 6 ft, Hose Tube Material Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Carbon Steel, Hose Color Black, Series FC579, Max. Working Pressure @ 70 F 10,000 psi, Safety Factor 2:1, Temp. Range -40 Degrees to 212 Degrees F, Standards MHI 1J100, MSHA APPROVED, Hose Configuration Coupled Assembly, Hose Fitting A Size 3/8 in, Hose Fitting B Size 3/8 in

Web Price

$158.74 / each

Qty

Product Details

Compatible Chemicals Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water

Country of Origin (subject to change) United States

Cover Synthetic Rubber with Double Wire Braid

Fitting Material Carbon Steel x Carbon Steel

Fitting Size 3/8 in x 3/8 in

Fitting Type M Coupler x M Coupler

For Media Type Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water

For Use With 10,000 PSI Pumps and Cylinders

Hose Color Black

Hose Configuration Coupled Assembly

Hose Cover Material Synthetic Rubber

Hose Ends 3/8 Male Quick-Coupler x 3/8 Male Coupler

Hose Fitting A Material Carbon Steel

Hose Fitting A Size 3/8 in

Hose Fitting A Type M Quick Disconnect

Hose Fitting B Material Carbon Steel

Hose Fitting B Size 3/8 in

Hose Fitting B Type M Quick Disconnect

Hose Fittings Carbon Steel 3/8 in M Coupler x Carbon Steel 3/8 in M Coupler

Hose Inside Dia. 1/4 in

Hose Inside Dia. (In.) 1/4

Hose Length 6 ft

Hose Reinforcement Material Carbon Steel

Hose Tube Material Rubber

Includes (2) 3/8 Male Coupler

Length (Ft.) 6

Material Rubber

Max. Operating PSI 10,000

Max. Working Pressure @ 70 F 10,000 psi

Not Recommended Chemicals 0, Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Antifreeze (Coolant), Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)

Package Quantity 1

Safety Factor 2:1

Series FC579

Standards MHI 1J100, MSHA APPROVED

Temp. Range -40 Degrees to 212 Degrees F

Type High Pressure
