Home / Swivel Joint, 1 In, Zinc Plated Steel

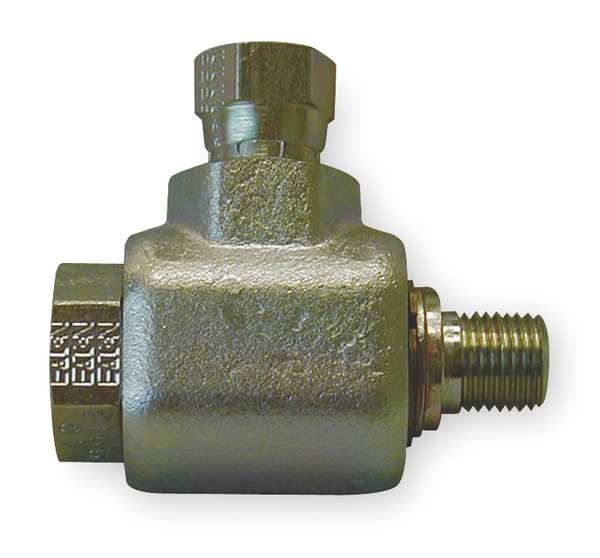

Swivel Joint, 1 In, Zinc Plated Steel

SKU
Brand Aeroquip
Categories
Description Swivel Joint, Fitting Material Steel, Fitting Material Finish Zinc-Plated, Maximum Operating Pressure 3,000 psi, Overall Length 3.91 in, Seal Material Buna-N, Maximum Operating Temperature 250 Degrees F, Minimum Operating Temperature -40 Degrees F, Standards ANSI B16.5, ASTM-A-351, MSS-SP-51 Class 150LB, Application Fluid Power System, Casing Center to End Length 2.4 in, Casing Connection Type NPSM, Casing Thread Gender Male, Casing Thread Size 1 In.-11 1/2, Fitting Shape 90 Degrees Elbow
graingerSKU: 1RKU7, mscSKU: , zoro_no: G3415185, mongo_id: 65bbe7fe22d7a989a98cf016

Web Price

$202.40 / each

Qty

Product Details

Application Fluid Power System

Casing Center to End Length 2.4 in

Casing Connection Type NPSM

Casing Thread 1-11 1/2 NPSM

Casing Thread Gender Male

Casing Thread Size 1-11 1/2

Connection NPSM x MNPT

Country of Origin (subject to change) United States

Fitting Material Steel

Fitting Material Finish Zinc-Plated

Fitting Shape 90 Degrees Elbow

For Fluid Type Glycol, Hydraulic Oil, Water

Inlet Connection 1-11 1/2 Male NPSM

Material Zinc-Plated Steel

Material of Construction Zinc Plated Steel

Maximum Operating Pressure 3,000 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature -40 Degrees F

Operating Pressure (PSI) 3,500

Outlet Connection 1-11 1/2 Female NPTF

Overall Height 3.48 in

Overall Length 3.91

Overall Width 2.05 in

Package Quantity 1

Pipe Fitting Material Zinc Plated Steel

Resistance Properties Corrosion Resistant

Seal Material Buna N

Sleeve Center to Top Height 2.27 in

Sleeve Connection Type NPTF

Sleeve Thread 1-11 1/2 NPTF

Sleeve Thread Gender Female

Sleeve Thread Size 1-11 1/2

Standards Dimensions Conform To ANSI B16.5, Material Conforms To ASTM-A-351, Meets MSS-SP-51 Class 150LB Standards For General Dimensions, Pressure And Temperature Ratings

Swivel Size 1 in
