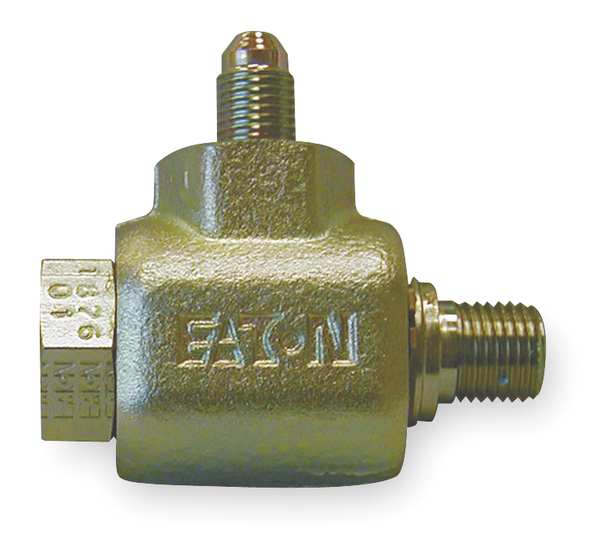

Swivel Joint, 1/4 In, Zinc Plated Steel

SKU
Brand Aeroquip
Categories
Description Swivel Joint, Fitting Material Steel, Fitting Material Finish Zinc-Plated, Maximum Operating Pressure 5,000 psi, Overall Length 2.6 in, Seal Material Buna-N, Maximum Operating Temperature 250 Degrees F, Minimum Operating Temperature -40 Degrees F, Standards ANSI B16.5, ASTM-A-351, MSS-SP-51 Class 150LB, Application Fluid Power System, Casing Center to End Length 1.66 in, Casing Connection Type SAE 37, Casing Thread Gender Male, Casing Thread Size 7/16 In.-20, Fitting Shape 90 Degrees Elbow
graingerSKU: 1RKU8, mscSKU: , zoro_no: G1386061, mongo_id: 65bbe75b9a749db822731cd4

Web Price

$131.18 / each

Qty

Product Details

Application Fluid Power System

Casing Center to End Length 1.66 in

Casing Connection Type SAE 37

Casing Thread 7/16-20 UNF

Casing Thread Gender Male

Casing Thread Size 7/16-20

Connection Male JIC x MNPT

Country of Origin (subject to change) United States

Fitting Material Steel

Fitting Material Finish Zinc-Plated

Fitting Shape 90 Degrees Elbow

For Fluid Type Glycol, Hydraulic Oil, Water

Inlet Connection 7/16-20 Male SAE 37

Material Zinc-Plated Steel

Material of Construction Zinc Plated Steel

Maximum Operating Pressure 5,000 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature -40 Degrees F

Operating Pressure (PSI) 5,000

Outlet Connection 1/4-18 Female NPTF

Overall Height 2.35 in

Overall Length 2.60

Overall Width 1.19 in

Package Quantity 1

Pipe Fitting Material Zinc Plated Steel

Resistance Properties Corrosion Resistant

Seal Material Buna N

Sleeve Center to Top Height 1.49 in

Sleeve Connection Type NPTF

Sleeve Thread 1/4-18 NPTF

Sleeve Thread Gender Female

Sleeve Thread Size 1/4-18

Standards Dimensions Conform To ANSI B16.5, Material Conforms To ASTM-A-351, Meets MSS-SP-51 Class 150LB Standards For General Dimensions, Pressure And Temperature Ratings

Swivel Size 1/4 in
