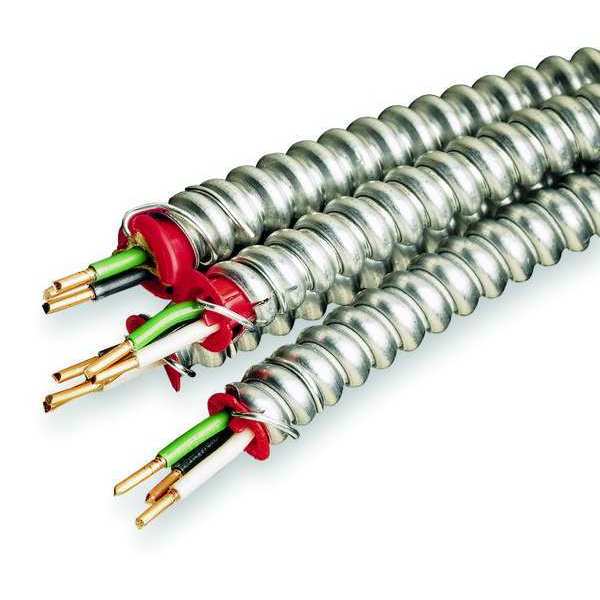

14 AWG 2 Conductor Armored Cable 15A 250 ft. SLVR

SKU
Brand Afc Cable Systems
Categories
Description Metal Clad Armored Cable, Trade Designation MC Lite, Wire Size 14 AWG, Number of Conductors 2 with Insulated CU Ground, Wire Color Black/Green/White, Jacket Color Silver, Length 250 ft, Conductor Design Solid, Jacket Material Aluminum, Insulation Material Nylon, PVC, Nominal Outside Dia. 0.47 in, Packaging Coil, Voltage 600 V, Temp. Rating 194 Degrees F Dry

Web Price

$306.24 / each

Qty

Product Details

Application General Purpose

Armor Material Interlocked Aluminum Strip

Cable Type (Wire and Cable) MC Lite

Cable Type - Wire and Cable MC Lite

Conductor Design Solid

Conductor Insulation Material1 THHN/THWN

Country of Origin (subject to change) United States

Features Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.; ColorSpecÃÂ® ID/Color-Trak ID System. Plain aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type.*; Redundant Grounding. For applications requiring isolated, redundant, or dedicated grounding conductors. Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request.; RoHS Compliant. Aluminum armored cables are RoHS compliant; Buy American. Aluminum armored cables are Buy American compliant; Made in USA of US and/or imported materials; *No ColorSpec on Low Voltage BK WE GN 12-2, all 10 AWG and larger configurations.

Insulated / Uninsulated Insulated

Insulation Material Nylon, PVC

Jacket Color Silver

Jacket Material Aluminum

Jacket Material (Wire and Cable) Aluminum

Jacket Material - Wire and Cable Aluminum

Length 250 ft

Length (Straight Wireway) 250 ft

Max. Amps 15

Max. Voltage 600V

Minimum Bend Radius 7.1

Nominal Outside Dia. 0.47 in

Number of Conductors 2 with Ground

Outside Dia. 0.47 in

Outside Diameter (in) 0.474

Package Quantity 1

Packaging Coil

Part Length (ft) 250

Shielding Material Polypropylene Tape

Spool Length 250 ft.

Standards UL 83, 1479, 1569, 1581, 2556, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544, Meets OSHA and HUD Requirements, ISO 9001 Certified

Stranded / Solid Solid

Temp. Rating 90ÃÂ°C Dry

Trade Designation MC Lite

Trade Size (in) 14-2

Voltage 600 V

Wire and Cable Item Metal Clad Armored Cable

Wire Color Black/Green/White

Wire Material Copper

Wire Size 14 AWG

Wire Size (Wire and Cable) 14 AWG

Wire Size - Wire and Cable 14 AWG
