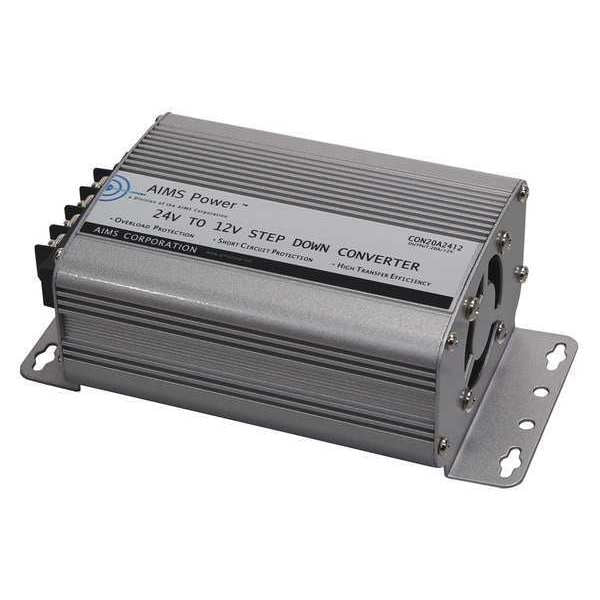

Converter, Aluminum Case, 12V DC Output Voltage

SKU
Brand Aims Power
Categories
Description Converter,20A,24VDC to 12VDC

Web Price

$109.74 / each

Product Details

Case Material Aluminum

Country of Origin (subject to change) Taiwan, Province of China

Depth 5.91

Features 20 Amp 24 volt to 12 volt dc to dc converter;Green LED on front panel to confirm power on;Terminal block for DC input/output;Over Temperature protection;Over Load protection;DC Input Low Battery Shutdown;DC Input High Battery Shutdown;DC Output Short Protection;DC Output Over Current Protection;DC Output Over Voltage Protection;Transformer based;Aluminum case for optimal cooling;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor;CE EN61000-6-3:2007+A1:2011;CE EN61000-6-1:2007

Height 2.20

Inverter Input Voltage 24V DC

Inveter Output Voltage 12V DC

Package Quantity 1

Specification Dimensions: DC Input Voltage: 20-37 Vdc;DC Output Voltage: 12.5-13.5 Vdc;Output Current: 20 amps;Output Current Max: 24 amps;Non-Isolated;Conversion Effiency: >91%;DC Input Low Battery Shutdown: 18 +/- 1 V;DC Input High Battery Shutdown: >38Vdc;DC Input Over Current Protection: 15A Fuse;DC Input Polarity Protection: Fuse Protected;Over Temperature Protection: 150 +/- 5 degrees F;DC Output Short Protection: Yes;DC Output Over Current Protection: 24 amps;DC Output Over Voltage Protection: TVS Diode;Unit Weight: 0.97 lbs.;Unit Size L x W x H: 5.91 x 3.39 x 2.2 inches;Shipping Weight: 1 lbs.

Width 3.39
