Home / Industrial Power Inverter, Aluminum Case, Pure Sine Wave Form, 3000W Nominal Output, 1 Outlets

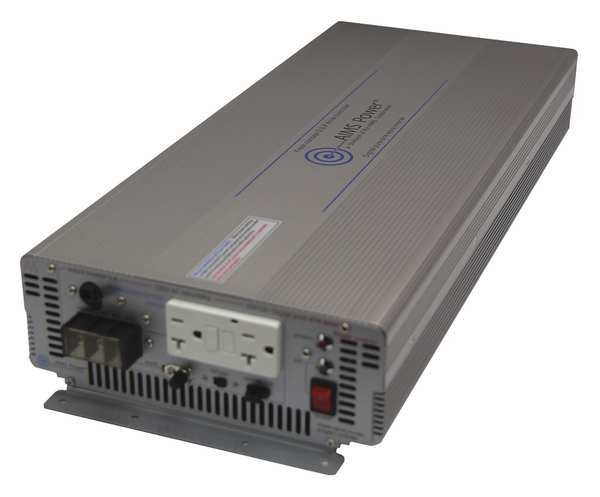

Industrial Power Inverter, Aluminum Case, Pure Sine Wave Form, 3000W Nominal Output, 1 Outlets

SKU
Brand Aims Power
Categories
Description Inverter, Features 5 Function Protection LED Indicator, AC Breaker, Direct Connect AC Terminal Block, Dual Cooling Fans Thermally Controlled, Improved Output At Low Voltage, Isolated Ground and Neutral, On/Off Switch, Short Circuit Protection, Output Form Pure Sine Wave, DC Connection Input Terminals, Continuous Output Power 3,000 W, Peak Output Power 6,000 W, Number of Outlets 2, Input Voltage 10.5 to 16V DC, Output Voltage 120V AC, Output Frequency 50/60 Hz, Efficiency 90 Percent
graingerSKU: 45TX25, mscSKU: , zoro_no: G2007665, mongo_id: 65bbe97a22d7a989a995a09e

Web Price

$1,068.74 / each

Qty

Product Details

Apparent Power Rating 3,000 W

Application Boats, Circuit Boards, Computer Servers, Cordless Drill Battery Chargers, Laserjet Printers, Medical Equipment, Microwaves, Off-Grid Home Back Up Power Systems, RVs, Sensitive Electronics, Small Compressors, Solar, Variable Speed Motors, Work Vehicles

Case Material Aluminum

Continuous Output Power 3,000 W

Country of Origin (subject to change) Korea, Republic of

DC Connection Post

Depth 20.47

Efficiency 90 %

Features 5 Function Protection LED Indicator, AC Breaker, Direct Connect AC Terminal Block, Dual Cooling Fans Thermally Controlled, Improved Output At Low Voltage, Isolated Ground and Neutral, On/Off Switch, Short Circuit Protection

Fused Yes

Height 3-1/2

Includes Cable, Connector, DC Volt Meter

Input Connection Input Terminals

Input Current 278 A

Input Voltage 10.5 to 16V DC

Inverter DxWxH 20 1/2 in x 8 7/8 in x 3 1/2 in

Inverter Input Voltage 10.5V to 16V DC

Inverter Output Form Pure Sine Wave

Inverter Output Voltage 115V AC

Inveter Output Voltage 120V AC

IP Rating IP20

Maximum Operating Temperature 176 Degrees F

Minimum Operating Temperature -4 Degrees F

NEMA Rating NEMA 1

Nominal Output Power 3000W

Number of Outlets 1

Number of Standard USB Ports 0

Number of USB Ports 0

Number of USB-C Ports 0

Outlet Type GFCI Dual

Output Connection (2) NEMA 5-20R; Terminal Block

Output Current 20 A, 50 A, 25 A

Output Form Pure Sine Wave

Output Frequency 50/60 Hz

Output Voltage 120V AC

Overall Depth 20 1/2 in

Overall Height 3 1/2 in

Overall Width 8 7/8 in

Package Quantity 1

Peak Output Power 6000W

Phase Single Phase

Power Factor 89 %

Real Power Rating 6,000 W

Specification Specifications: Continuous output power: 3000 Watts;Surge power capability (peak power): 6000 Watts;Dc input / operating voltage: 10.5-16 Volts;Output voltage: 120 Volts ac;Output voltage regulation: +/- 3%;Output wave form: pure sine wave;Output frequency: 50/60 Hz;Battery low voltage alarm: 10.5 +/- 0.5 Volts;Battery low voltage shutdown: 10.0 v +/- 0.5 Volts;No load power consumption: fan off <0.9 DC amps or fan on <1.37 DC amps;THD: <5%;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -4 degrees Farenheit;Full load maximum operating temperature: 176 degrees Farenheit (automatic shutdown);GFCI Resetable AC Outlet;High input voltage shutdown: 17V;Low input voltage shutdown: 10V;Internal blade fuse protection;Product size (L x W x H): 20.47 x 8.86 x 3.50;Weight: 16.09 lbs unit boxed 20 lbs

Standards FCC Certified

Temperature Rise 115 Degrees F

Type of Indicator Green LED

Width 8.86
