Home / Inverter, Aluminum Case, Modified Sine Wave Form, 8000W Nominal Output, 120V AC Output Voltage

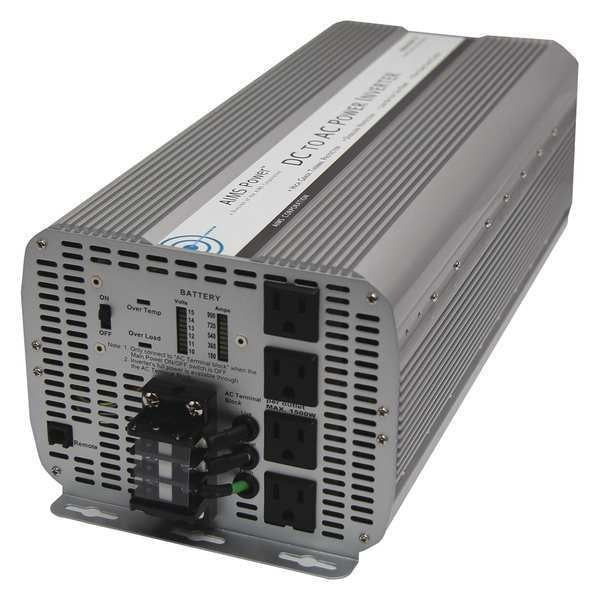

Inverter, Aluminum Case, Modified Sine Wave Form, 8000W Nominal Output, 120V AC Output Voltage

SKU
Brand Aims Power
Categories
Description Modified Sine Inverter,8000W,12V to 120V
graingerSKU: 43TD35, mscSKU: , zoro_no: G4429787, mongo_id: 65bbe9c522d7a989a9976d74

Web Price

$1,184.99 / each

Product Details

Case Material Aluminum

Country of Origin (subject to change) Taiwan, Province of China

Depth 19.02

Features 8000W max continuous power;Modified sine wave;Volt meter on front panel to monitor your battery voltage;Amp meter on front panel to monitor your current use (rate at which battery is drained);Over Temperature LED indicator;Over Load LED indicator;AC direct connect terminal block;On/off switch;Over Temperature protection;Over Load protection;Single cooling fan thermally controlled;Internally fuse protected;AC output short circuit protection;Auto reset on most fault conditions;Aluminum case for optimal cooling;Pre-wired for remote on/off switch;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor

Height 6.02

Inverter Input Voltage 10V to 15V DC

Inverter Output Form Modified Sine Wave

Inveter Output Voltage 120V AC

Nominal Output Power 8000W

Package Quantity 1

Peak Output Power 16000W

Specification Continuous output power: 8000 Watts;Surge power capability (peak power): 16000 Watts;dc input / operating voltage: 10 to 15 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 10.5 +/- 0.5 Volts;Battery low voltage shutdown: 10.0 +/- 0.5 Volts;No load current: < 1.3 DC amps;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: 30ÃÂºF;Full load maximum operating temperature: 140ÃÂºF;AC Output Socket Type: quadruple Type 2 -3 prong;High input voltage protection: 15V-17V;Low input voltage shutdown: 10V Internal fuse protection;Product size (L x W x H): 19.02X 7.76X 6.02;Weight: unit 19.8 lbs boxed 24 lbs;UL maximum recommended per outlet 1500W;This inverter requires 2 sets of 4 AWT cable if you are going to run at 8000 watts.

Width 7.76
