Home / Inverter, Aluminum Case, Pure Sine Wave Form, 1500W Nominal Output, 120V AC Output Voltage

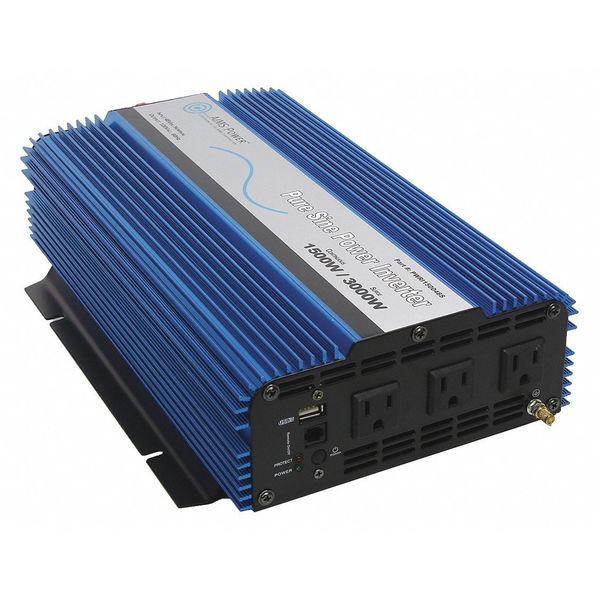

Inverter, Aluminum Case, Pure Sine Wave Form, 1500W Nominal Output, 120V AC Output Voltage

SKU
Brand Aims Power
Categories
Description Inverter, Features AC Output Short Circuit Protection, High Input Voltage Protection With Automatic Shutdown, Low Battery Voltage Warning/Shutdown, Over Load Indicator, Over Temperature Indicator, Short Circuit Protection, Output Form Pure Sine Wave, DC Connection Post, Continuous Output Power 1,500 W, Peak Output Power 3,000 W, Number of Outlets 4, Input Voltage 38 to 62V DC, Output Voltage 120V AC, Output Frequency 60 Hz, Efficiency 90 Percent, Overall Depth 15 7/8 in, Overall Height 3 7/8 in
graingerSKU: 45TX20, mscSKU: , zoro_no: G2007717, mongo_id: 65bbe7ee22d7a989a98ca96f

Web Price

$453.74 / each

Qty

Product Details

Apparent Power Rating 1,500 W

Application Boats, Buses, RVs, Vans, Vehicles

Case Material Aluminum

Continuous Output Power 1,500 W

Country of Origin (subject to change) China

DC Connection Post

Depth 15-7/8

Efficiency 90 %

Features AC Output Short Circuit Protection, High Input Voltage Protection With Automatic Shutdown, Low Battery Voltage Warning/Shutdown, Over Load Indicator, Over Temperature Indicator, Short Circuit Protection

Fused Yes

Height 3-7/8

Includes Remote Port, USB Port

Input Connection Input Terminals

Input Current 35 A

Input Voltage 38 to 62V DC

Inverter DxWxH 15 7/8 in x 8 3/8 in x 3 7/8 in

Inverter Input Voltage 48V DC

Inverter Output Form Pure Sine Wave

Inverter Output Voltage 115V AC

Inveter Output Voltage 120V AC

IP Rating IP20

Maximum Operating Temperature 104 Degrees F

Minimum Operating Temperature 32 Degrees F

NEMA Rating NEMA 1

Nominal Output Power 1500W

Number of Outlets 3

Number of Standard USB Ports 1

Number of USB Ports 1

Number of USB-C Ports 1

Outlet Type Standard 3-Prong Outlet

Output Connection (3) Type B Socket; USB

Output Current 12.5 A, 25 A, 900 mAh

Output Form Pure Sine Wave

Output Frequency 60 Hz

Output Voltage 120V AC

Overall Depth 15 7/8 in

Overall Height 3 7/8 in

Overall Width 8 3/8 in

Package Quantity 1

Peak Output Power 3000W

Phase Single Phase

Power Factor 89 %

Real Power Rating 3,000 W

Specification Continuous output power 1500 watts;Surge power 3000 watts;Input voltage range 38-62v;Output voltage 120v;DC input 48v;Output wave form Pure sine wave 60Hz (THD ÃÂ¢Ã¢ÂÂ°ÃÂ¤3%)\;Efficiency 90%;USB Output 5VDC, Max, 1A;Input over-voltage shutdown 62 ÃÂ± 1VDC;Input under-voltage shutdown 38 ÃÂ± 1VDC;Input under-voltage alarm 39.2 ÃÂ± 1VDC;Over temperature protection 149 ÃÂ± 8ÃÂ°F;Over-load protection 1700W ÃÂ± 200W;No Load currents 0.5A;Working Temperature 32-104ÃÂ°F;Storage temperature 14-113ÃÂ°F;Intelligent cooling (the cooling fan will start running when the case temperature reaches 104ÃÂ°F);Dimension (L x W x H) 15.875 x 8.375 x 3.875 in.;Unit Weight 10 lbs;Shipping weight 12 lbs;Remote port for optional remote

Temperature Rise 115 Degrees F

Type of Indicator Green LED

Width 8-3/8
