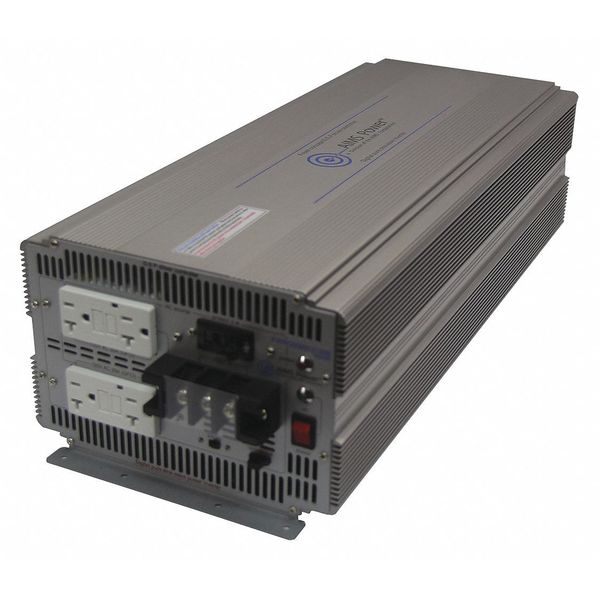

Inverter, Aluminum Case, Pure Sine Wave Form, 5000W Nominal Output, 120V AC Output Voltage

SKU
Brand Aims Power
Categories
Description Inverter, Features 5 Function Protection LED Indicator, AC Breaker, Direct Connect AC Terminal Block, Dual Cooling Fans Thermally Controlled, Improved Output At Low Voltage, Isolated Ground and Neutral, On/Off Switch, Short Circuit Protection, Output Form Pure Sine Wave, DC Connection Input Terminals, Continuous Output Power 5,000 W, Peak Output Power 10,000 W, Number of Outlets 4, Input Voltage 26.4V DC, Output Voltage 120V AC, Output Frequency 50/60 Hz, Efficiency 91 Percent
graingerSKU: 45TX22, mscSKU: , zoro_no: G2007699, mongo_id: 65bbe99e22d7a989a99687bf

Web Price

$1,748.74 / each

Qty

Product Details

Apparent Power Rating 5,000 W

Application Boats, Circuit Boards, Computer Servers, Cordless Drill Battery Chargers, Laserjet Printers, Medical Equipment, Microwaves, Off-Grid Home Back Up Power Systems, RVs, Sensitive Electronics, Small Compressors, Solar, Variable Speed Motors, Work Vehicles

Case Material Aluminum

Continuous Output Power 5,000 W

Country of Origin (subject to change) Korea, Republic of

DC Connection Post

Depth 23-3/4

Efficiency 91 %

Features 5 Function Protection LED Indicator, AC Breaker, Direct Connect AC Terminal Block, Dual Cooling Fans Thermally Controlled, Improved Output At Low Voltage, Isolated Ground and Neutral, On/Off Switch, Short Circuit Protection

Fused Yes

Height 6-1/4

Includes Cable, Connector, DC Volt Meter

Input Connection Input Terminals

Input Current 232 A

Input Voltage 26.4V DC

Inverter DxWxH 23 3/4 in x 8 7/8 in x 6 1/4 in

Inverter Input Voltage 21V to 30V DC

Inverter Output Form Pure Sine Wave

Inverter Output Voltage 115V AC

Inveter Output Voltage 120V AC

IP Rating IP20

Maximum Operating Temperature 174 Degrees F

Minimum Operating Temperature -13 Degrees F

NEMA Rating NEMA 1

Nominal Output Power 5000W

Number of Outlets 2

Number of Standard USB Ports 0

Number of USB Ports 0

Number of USB-C Ports 0

Outlet Type GFCI Dual

Output Connection (4) NEMA 5-20R; Terminal Block

Output Current 20 A, 83.3 A, 41.7 A

Output Form Pure Sine Wave

Output Frequency 50/60 Hz

Output Voltage 120V AC

Overall Depth 23 3/4 in

Overall Height 6 1/4 in

Overall Width 8 7/8 in

Package Quantity 1

Peak Output Power 10000W

Phase Single Phase

Power Factor 89 %

Real Power Rating 10,000 W

Specification Specifications;DC Input Voltage 26.4V (21V-30V);Output Voltage no load 120Vac +/- 3%;Continuous 5000 Watts;Surge 10000 Watts;91% Efficiency @ full load;No Load Current (Fan Off) 1.3A 24V;No Load Current (Fan On) 2.2A 24V;Low Battery Shut Down: 20.0V;Low Battery Return on Power: 22.4V;High Battery Shut Down: 31.7V;High battery return on Power: 30.0V;Frequency Selection 50/60hz;Over Temperature Protection: -25ÃÂºC Ã¢ÂÂ 79ÃÂºC;Cooling Fan on Temperature: 40ÃÂºC;GFCI Outlets rated at 20A per block.;Dimensions (inches) 23.75 x 8.88 x 6.25;Weight: 27lbs

Standards FCC Certified

Temperature Rise 115 Degrees F

Type of Indicator Green LED

Width 8.88
