Home / Inverter And Battery Charger, Sheet Metal Case, Pure Sine Wave Form, 4000W Nominal Output

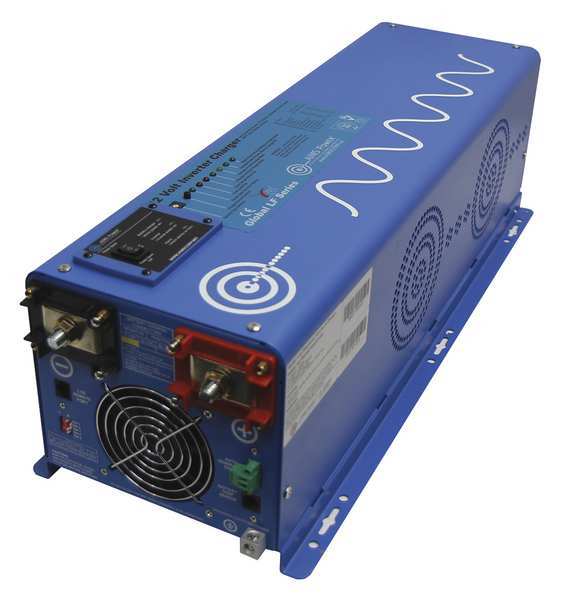

Inverter And Battery Charger, Sheet Metal Case, Pure Sine Wave Form, 4000W Nominal Output

SKU
Brand Aims Power
Categories
Description Inverter and Battery Charger, Inverter Output Form Pure Sine Wave, DC Connection Post, Continuous Output Power 4,000 W, Peak Output Power 12,000 W, Number of Outlets 0, Inverter Input Voltage 12V DC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 14V to 15.5V, Output Frequency 50 +/- 0.3Hz or 60 +/- 0.3Hz selectable, Efficiency 88 Percent, Number of USB Ports 0, Number of USB-C Ports 0, Case Material Sheet Metal, Weight 64 lb, Cooling Method Forced Air
graingerSKU: 45TX19, mscSKU: , zoro_no: G2007726, mongo_id: 65bbe7313aaddbd5a907eae7

Web Price

$2,029.99 / each

Qty

Product Details

Application Emergency Back Up/ Off-Grid

Automatic/Manual Automatic

Case Material Sheet Metal

Charger Depth 23.5 in

Charger DxWxH 23.5 in x 8.8 in x 7.1 in

Charger Height 7.1 in

Charger Input Amps 16.7

Charger Input Current 16.7 A

Charger Input Voltage 120V AC

Charger Output Amps 100

Charger Output Current 100 A

Charger Output Voltage 14V to 15.5V

Charger Width 8.8 in

Connection Location connects to battery bank and requires 500A fuse

Continuous Output Power 4,000 W

Cooling Method Forced Air

Country of Origin (subject to change) China

DC Connection Post

Depth 23-1/2

Efficiency 88 %

Features Auto Frequency

Height 7.10

Input Voltage 10 to 16 VDC

Inverter Depth 23.5 in

Inverter Height 7.1 in

Inverter Input Voltage 12V DC

Inverter Output Form Pure Sine Wave

Inverter Output Voltage 120V AC

Inverter Width 8.7 in

Inveter Output Voltage 120V AC

Nominal Output Power 4000W

Number of Outlets 0

Number of USB Ports 0

Number of USB-C Ports 0

Outlet Type Hardwired

Output Frequency 50 +/- 0.3Hz or 60 +/- 0.3Hz selectable

Output Voltage 120V AC

Package Quantity 1

Peak Output Power 12000W

Specification Continuous Output Power: 4000 Watts;Surge Rating: 12000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14ÃÂ°F to 122ÃÂ°F (-10ÃÂ°C to 50ÃÂ°C);Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low Battery Trip: 10.0Vdc-10.5Vdc;High Voltage Shutdown: 16.0Vdc;Low Battery Voltage Restart: 13.3Vdc;Idle Consumption: <3.47 amps DC;Power Saver Mode Idle Consumption: <0.53 amps DC;Output voltage: depends on battery type;Charger rate: 115A;Over charge protection shutdown 15.7V;Selectable charge setting based on battery type;Adjustable charge current: off-20%-100%;Four stage smart charger;40 amp automatic transfer switch;10 ms (max);Unit Weight: 64 lbs.;Unit Size L x W x H: 27.88 x 8.75 x 7.10 inches;Shipping Weight: 75 lbs.;Shipping L x W x H 30.5 x 14.25 x 13.75inches

Standards ISO-9001

Weight 64 lb

Width 8-3/4
