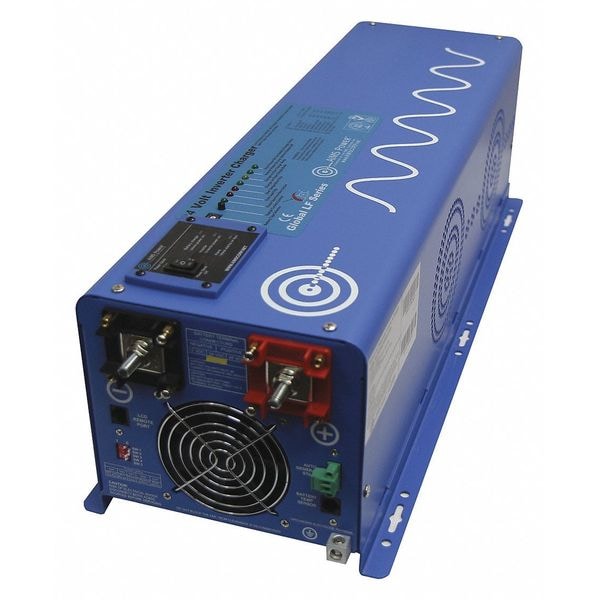

Inverter And Battery Charger, Sheet Metal Case, Pure Sine Wave Form, 6000W Nominal Output, 1 Outlets

SKU
Brand Aims Power
Categories
Description Inverter and Battery Charger, Inverter Output Form Pure Sine Wave, DC Connection Post, Continuous Output Power 6,000 W, Peak Output Power 18,000 W, Number of Outlets 0, Inverter Input Voltage 24V DC, Inverter Output Voltage 120/240V AC, Charger Input Voltage 240V AC, Charger Output Voltage 120V AC to 240V AC, Output Frequency 50 +/- 0.3Hz or 60 +/- 0.3Hz selectable, Efficiency 88 Percent, Number of USB Ports 0, Number of USB-C Ports 0, Case Material Sheet Metal, Weight 79 lb
graingerSKU: 45TX15, mscSKU: , zoro_no: G2007769, mongo_id: 65bbe6ec3aaddbd5a9062068

Web Price

$2,724.99 / each

Qty

Product Details

Application Emergency Back Up/ Off-Grid

Automatic/Manual Automatic

Case Material Sheet Metal

Charger Depth 23.5 in

Charger DxWxH 23.5 in x 8.5 in x 7 in

Charger Height 7 in

Charger Input Amps 12.5

Charger Input Current 12.5 A

Charger Input Voltage 240V AC

Charger Output Amps 85

Charger Output Current 85 A

Charger Output Voltage 120V AC to 240V AC

Charger Width 8.5 in

Connection Location connects to battery bank and requires 300 A fuse

Continuous Output Power 6,000 W

Cooling Method Forced Air

Country of Origin (subject to change) China

DC Connection Post

Depth 23-1/2

Efficiency 88 %

Features Auto Frequency

Height 7

Input Voltage 20 to 32 VDC

Inverter Depth 23.5 in

Inverter Height 7 in

Inverter Input Voltage 24V DC

Inverter Output Form Pure Sine Wave

Inverter Output Voltage 120/240V AC

Inverter Width 8.5 in

Inveter Output Voltage Depends On Battery Type

Nominal Output Power 6000W

Number of Outlets 1

Number of USB Ports 0

Number of USB-C Ports 0

Outlet Type GFCI

Output Frequency 50 +/- 0.3Hz or 60 +/- 0.3Hz selectable

Output Voltage 240V AC

Package Quantity 1

Peak Output Power 18000W

Specification Continuous Output Power: 6000 Watts;Surge Rating: 18000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient operating temperature: 14ÃÂ°F to 122ÃÂ°F (-10ÃÂ°C to 50ÃÂ°C);Nominal Input Voltage: 24.0Vdc;Low Battery Alarm: 21.0Vdc-22.0Vdc;Low battery Trip: 20.0Vdc-21.0Vdc;High Voltage Alarm: 32.0Vdc;Low battery Voltage Restart: 26.6Vdc;Idle Consumption: 76.8 Watts;Idle Consumption in Power Saver Mode: 29 Watts;Output voltage: Depends on battery Type;Charger Rate: 85A;Unit Weight: 79 lbs.;Unit Size L x W x H: 27.88 x 8.5 x 7.0 inches;Shipping Weight: 84 lbs.;Shipping L x W x H 30.5 x 14.5 x 13.75 inches

Standards ISO-9001

Weight 79 lb

Width 8-1/2
