Home / Inverter Charger, Sheet Metal Case, Pure Sine Wave Form, 3000W Nominal Output

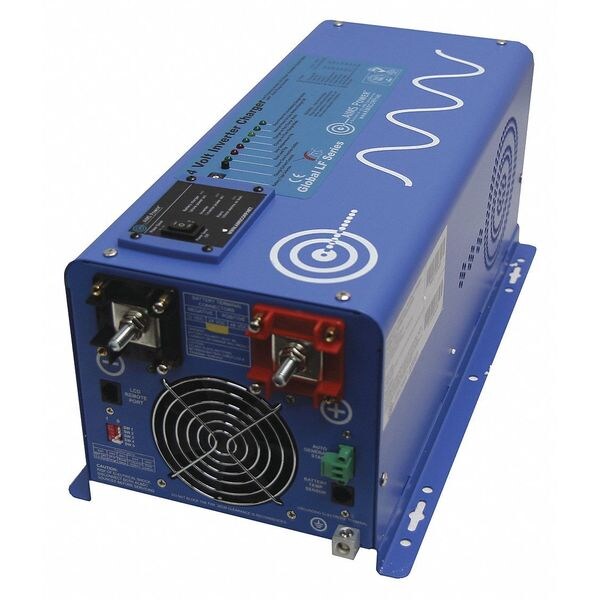

Inverter Charger, Sheet Metal Case, Pure Sine Wave Form, 3000W Nominal Output

SKU
Brand Aims Power
Categories
Description Inverter Charger, Inverter Output Form Pure Sine Wave, DC Connection Post, Continuous Output Power 3,000 W, Peak Output Power 9,000 W, Number of Outlets 2, Inverter Input Voltage 24V DC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Output Frequency 52 +/- 2.3Hz or 60 +/- 2.3Hz selectable, Efficiency 88 Percent, Number of USB Ports 0, Number of USB-C Ports 0, Case Material Sheet Metal, Weight 56 lb, Cooling Method Forced Air
graingerSKU: 45TX17, mscSKU: , zoro_no: G2007741, mongo_id: 65bbe87122d7a989a98f5ac0

Web Price

$1,673.74 / each

Qty

Product Details

Application Emergency Back Up/ Off-Grid

Automatic/Manual Automatic

Case Material Sheet Metal

Charger Depth 16.5 in

Charger DxWxH 16.5 in x 8.7 in x 7.1 in

Charger Height 7.1 in

Charger Input Amps 12.5

Charger Input Current 12.5 A

Charger Input Voltage 120V AC

Charger Output Amps 30

Charger Output Current 30 A

Charger Output Voltage 120V

Charger Width 8.7 in

Connection Location connects to battery bank and requires 150 A fuse

Continuous Output Power 3,000 W

Cooling Method Forced Air

Country of Origin (subject to change) China

DC Connection Post

Depth 16.48

Efficiency 88 %

Features Auto Frequency

Height 7.10

Input Voltage 20 to 32 VDC

Inverter Depth 16.5 in

Inverter Height 7.1 in

Inverter Input Voltage 24V DC

Inverter Output Form Pure Sine Wave

Inverter Output Voltage 120V AC

Inverter Width 8.7 in

Inveter Output Voltage Depends On Battery Type

Nominal Output Power 3000W

Number of Outlets 2

Number of USB Ports 0

Number of USB-C Ports 0

Outlet Type Hardwired, Dual GFCI

Output Frequency 52 +/- 2.3Hz or 60 +/- 2.3Hz selectable

Output Voltage 120V AC

Package Quantity 1

Peak Output Power 9000W

Specification SpecificationsInverter Output Specifications: Input Specifications;Charger Specifications;Dimensions;Continuous Output Power: 3000 Watts;Surge Rating: 9000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14ÃÂ°F to 122ÃÂ°F (-10ÃÂ°C to 50ÃÂ°C);Nominal Input Voltage: 24.0Vdc;Minimum Start Voltage: 20.0Vdc;Low Battery Alarm: 21.0Vdc-22.0Vdc;Low Battery Trip: 20.0Vdc-21.0Vdc;High Voltage Alarm: 32.0Vdc;Low Battery Voltage Restart: 26.6Vdc;Idle Consumption: 46.5 Watts;Power Saver Mode Idle Consumption: 18.9 Watts;Output Voltage: Depends on battery Type;Charger Rate: 40A;Unit Weight: 56 lbs.;Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches;Shipping Weight: 64 lbs.;Shipping L x W x H 23.5 x 13.0 x 12.5 inches

Standards ISO-9001

Weight 56 lb

Width 8.74
