Home / Inverter with Transfer Switch, Pure Sine Wave Form, 1200W Nominal Output, 120V AC Output Voltage

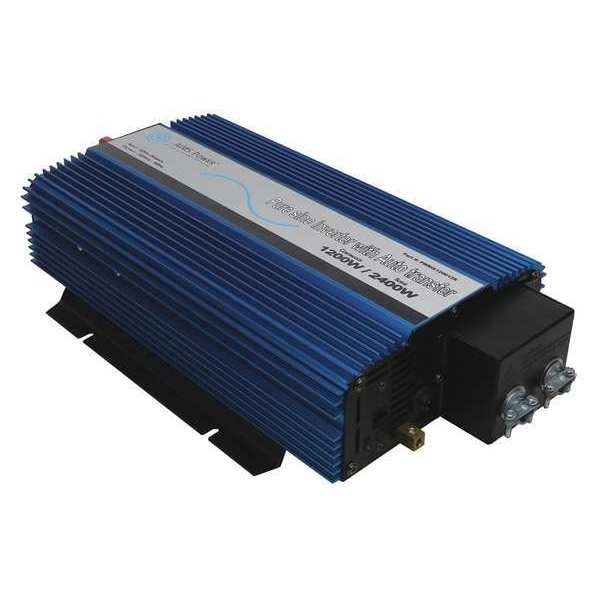

Inverter with Transfer Switch, Pure Sine Wave Form, 1200W Nominal Output, 120V AC Output Voltage

SKU
Brand Aims Power
Categories
Description Inverter,1200W,w/Transfer Switch

Web Price

$494.99 / each

Qty

Product Details

Country of Origin (subject to change) China

Depth 17-1/4

Features Pure sine;Conforms to UL458;Hard wire direct connect terminal block;1200 watt continuous power;2400 watt surge;Bypass when the inverter is off or on;Over voltage shutdown;Under voltage shutdown;Intelligent cooling fan;Automatic transfer switch 10 amps;Conformal coated for marine applications;Remote switch available;Less than 20msec typical transfer time;2 year warranty

Height 3.80

Inverter Input Voltage 10V to 16V DC

Inverter Output Form Pure Sine Wave

Inveter Output Voltage 120V AC

Nominal Output Power 1200W

Package Quantity 1

Peak Output Power 2400W

Specification Optional RemotePart # REMOTEHF Optional Remote on/off switch (new flush mount design)Dip switches to black out the lights if preferred.L x W x H: 3 x 2.06 x 1;1200 watts;2400 watt surge;Built in transfer switch 10 amp transfer;Bypass/throughput = 10 amps. Do not exceed, damage may occur and void warranty.;DC input voltage 10-16V;AC input voltage 120VAC +/-10%;Output voltage 120VAC, 60HZ;Efficiency 86-90%;Over voltage shutdown 16VDC +/- .5V;Under voltage shutdown 10VDC +/- .5V;Under voltage alarm 10.3VDC +/- .3V;Over temp protection 150 degrees F +/- 5 degrees F;Thermal fan;Pure Sine output;No load current 1.2A;Direct connect terminal block;L x W x H: 17.25 x 9.5 x 3.8;Unit Ã¢ÂÂ 10.2 lbs;Boxed Ã¢ÂÂ 13 lbs

Width 9.31
