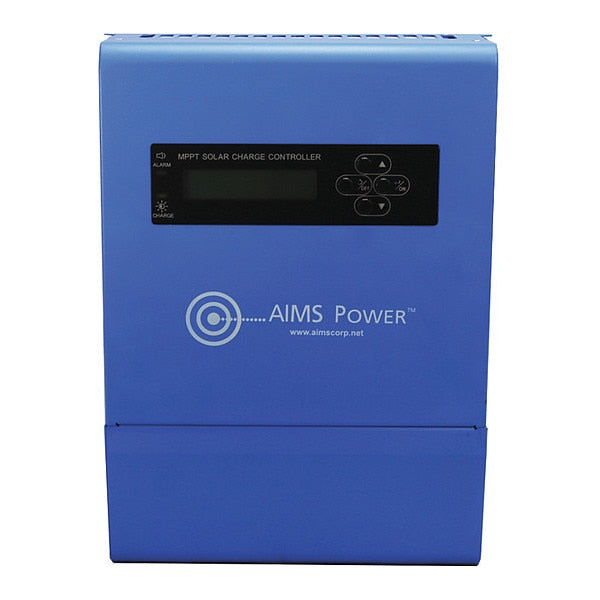

MPPT Solar, Charge Controller, 40A

SKU
Brand Aims Power
Categories
Description MPPT Solar,Charge Controller,40A

Web Price

$395.00 / each

Qty

Product Details

Country of Origin (subject to change) China

Features MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve;Quality heatsink cooling Ã¢ÂÂ no fans needed and no thermal derating;Battery type selector and user defined charging voltage;4 stage charging;PV input, battery output and load control ports;Stackable;Reliable electronics, over engineered components generating less heat;Very efficient up to 99%;Low self consumption;Thermal design rugged case;Over temp protection;Overload, short circuit, high and low voltage protection;RS485 port for computer monitoring;CE, ETL to UL1741 and RoHS compliant;Marine coated;Mounting holes

Package Quantity 1

Specification ELECTRICALPV Operating Voltage: Rated PV input: CHARGING;MECHANICAL;15-150Vdc@12V;34-150Vdc@24V;50-150Vdc@36V;60-150Vdc@48V;12V Ã¢ÂÂ 500 Watts;24V Ã¢ÂÂ 1000 watts;36V Ã¢ÂÂ 1500 watts;48V Ã¢ÂÂ 2000 watts;Maximum battery current: 40 amps;DC load port: 40 amps;Max PV open circuit voltage: 150Vdc;Self power consumption: <4 watts;Efficiency: 97.5%;Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct;Monitoring: RS485 port for computer monitoring;Optimal cooling case design Ã¢ÂÂ built for extreme conditions;Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage);4 Stage charging: bulk, absorption, float and equalize;Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15V;Float charge voltage: sealed/AGM/gel 13.7V, flooded 13.6V, user defined 10-15V;Equalize charge voltage: sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user defined 10-15V;Low voltage reconnection: 12.5V;Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable);Enclosure: IP43 protection, metal;Cooling: heatsink;Humidity: 100% non-condensing;Temperature compensation: -5mVÃÂ°C / 2V with BTS;Temperature range: -25ÃÂ°C to 60ÃÂ°C or -13ÃÂ°F to 140ÃÂ°F;Conformal coated for marine environments;Wire knockouts: 1.25;Unit weight: 8 lbs;Boxed weight: 9 lbs;Dimensions: 10.6L x 7.25W x 3.5H;Warranty: 2 years;Certifications: ETL to UL1741, CE, RoHS, CETL
