Home / Power Inverter, Aluminum Case, Modified Sine Wave Form, 2500W Nominal Output, 1 Outlets

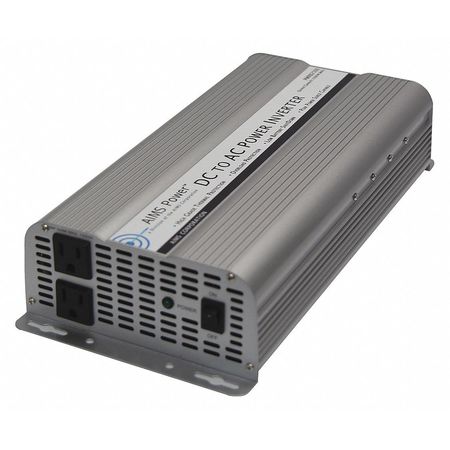

Power Inverter, Aluminum Case, Modified Sine Wave Form, 2500W Nominal Output, 1 Outlets

SKU
Brand Aims Power
Categories
Description Simple Power Inverter,2500W,12V
graingerSKU: 43TD04, mscSKU: , zoro_no: G4430058, mongo_id: 65bbe70e3aaddbd5a9070537

Web Price

$342.49 / each

Product Details

Case Material Aluminum

Country of Origin (subject to change) Taiwan, Province of China

Depth 14-1/2

Features Features: 2500W max continuous power;Modified sine wave;Over Temperature protection;Over Load protection;Dual ac receptacle that can be split with a separate spliter if extra outlets are needed;On/off switch;Convenient always on dual cooling fan operation;Internally fuse protected;ac output short circuit protection;Auto reset on most fault conditions;Battery terminals are designed to conduct more current therefore requiring only one set of cables.;Aluminum case for optimal cooling;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor

Height 3

Inverter Input Voltage 10V to 15V DC

Inverter Output Form Modified Sine Wave

Inveter Output Voltage 120V AC

Nominal Output Power 2500W

Number of Outlets 1

Outlet Type Dual AC Receptacle

Package Quantity 1

Peak Output Power 5000W

Specification Specifications: Continuous output power: 2500 Watts. Use 200 amp inline fuse.;Surge power capability (peak power): 5000 Watts;dc input / operating voltage: 10 to 15 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 10.5 +/- 0.5 Volts;Battery low voltage shutdown: 10.0 +/- 0.5 Volts;AC amps: 21;DC amps: 208;No load current: 2.5 Amps with switch in the on position (because fans are always on) See PWRINV2500 if you donÃÂ¢Ã¢ÂÂ¬Ã¢ÂÂ¢t want always on fans.;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -15 degrees Celsius;Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown);AC Output Socket Type: dual Type 2 -3 prong;High input voltage protection: 15V-17V;Low input voltage shutdown: 10V;Internal fuse protection;Product size (L x W x H): 14.5X 6.5X 3.0;Unit Weight: 6.1 lbs Boxed Weight: 8 lbs;UL maximum recommended per outlet 1500W

Width 6-1/2
