Home / Power Inverter, Aluminum Case, Modified Sine Wave Form, 2500W Nominal Output

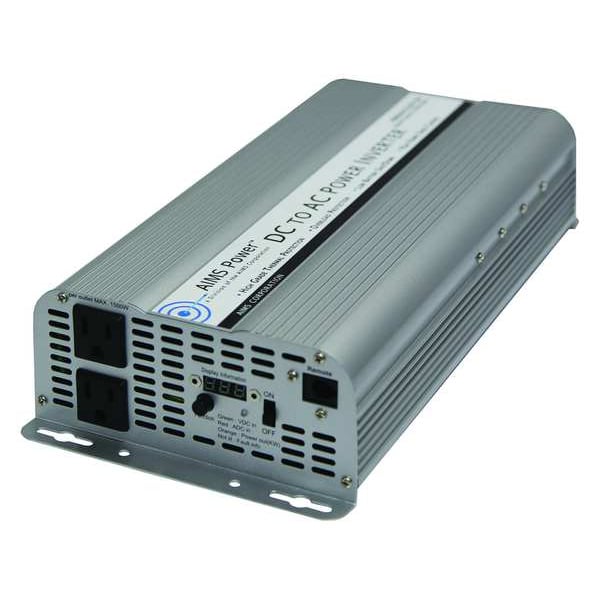

Power Inverter, Aluminum Case, Modified Sine Wave Form, 2500W Nominal Output

SKU
Brand Aims Power
Categories
Description Power Inverter,2500W,24VDC to 120VAC
graingerSKU: 43TD24, mscSKU: , zoro_no: G4429875, mongo_id: 65bbe8bc22d7a989a9912459

Web Price

$424.99 / each

Product Details

Case Material Aluminum

Country of Origin (subject to change) Taiwan, Province of China

Depth 14.60

Features Features: 2500W max continuous power;Modified sine wave;24 Volt DC inverter;Volt meter on front panel to monitor your battery voltage;Watt meter on front panel;LED indicator green/red that monitors ready/fault;Isolated ground neutral;Dual ac receptacles;On/off switch;Over Temperature protection;Over Load protection;Cooling fan operation thermally controlled;Internally fuse protected;AC output short circuit protection;Auto reset on most fault conditions;Aluminum case for optimal cooling;Pre-wired for remote on/off switch;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor

Height 3.30

Inverter Input Voltage 20V to 30V DC

Inverter Output Form Modified Sine Wave

Inveter Output Voltage 120V AC

Nominal Output Power 2500W

Package Quantity 1

Peak Output Power 5000W

Specification Specifications: Continuous output power: 2500 Watts. Use our 150 amp inline fuse.;Surge power capability (peak power): 5000 Watts;dc input / operating voltage: 20 to 30 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage shutdown: 20.0 +/- 0.5 V;No load current: < 0.6 Amps;DC amps: 104;AC amps: 21;Full load efficiency: 90%;1/3 load efficiency: 95%;Operating temperature: 30-150 degrees F (automatic shutdown);AC Output Socket Type: dual Type 2 -3 prong;High input voltage protection: 30V-34V;Low input voltage shutdown: 20V;Internal fuse protection;Product size (D x W x H): 14.6 X 6.6 X3.3;Weight: 6.2 lbs unit only;UL maximum recommended per outlet 1500W

Width 6.60
