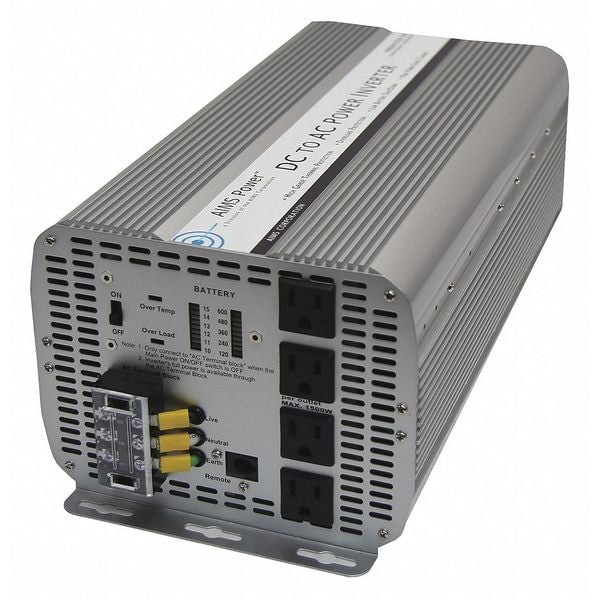

Power Inverter, Aluminum Case, Modified Sine Wave Form, 5000W Nominal Output, 1 Outlets

SKU
Brand Aims Power
Categories
Description Inverter, Features AC Direct Connect Terminal, AC Output Short Circuit Protection, Amp Meter on Front Panel to Monitor Current Use, Auto Reset On Most Fault Conditions, On/Off Switch, Over Load LED Indicator, Over Load Protection, Over Temperature LED Indicator, Over Temperature Protection, Pre-Wired for Remote On/Off Switch, Single Cooling Fan Operation Thermally Controlled, Volt Meter On Front Panel to Monitor Battery Voltage, Output Form Modified Sine Wave, DC Connection Input Terminals
graingerSKU: 45TX23, mscSKU: , zoro_no: G2007680, mongo_id: 65bbe8479a749db82278373a

Web Price

$734.99 / each

Qty

Product Details

Apparent Power Rating 5,000 W

Application Boats, Cabins, Construction Vehicles, Larger Solar Systems, Lawn Maintenance Equipment, Off-Grid Back-Up Power at Home, RVs, Small Mobile Office or Kitchen, Work Trucks

Case Material Aluminum

Continuous Output Power 5,000 W

Country of Origin (subject to change) Taiwan, Province of China

DC Connection Post

Depth 16.92

Efficiency 90 %

Features AC Direct Connect Terminal, AC Output Short Circuit Protection, Amp Meter on Front Panel to Monitor Current Use, Auto Reset On Most Fault Conditions, On/Off Switch, Over Load LED Indicator, Over Load Protection, Over Temperature LED Indicator, Over Temperature Protection, Pre-Wired for Remote On/Off Switch, Single Cooling Fan Operation Thermally Controlled, Volt Meter On Front Panel to Monitor Battery Voltage

Fused Yes

Height 6.10

Includes Pre-Slotted Mounting Plate

Input Connection Input Terminals

Input Current 492 A

Input Voltage 10 to 15V DC

Inverter DxWxH 16 7/8 in x 8 in x 6 1/8 in

Inverter Input Voltage 10V to 15V DC

Inverter Output Form Modified Sine Wave

Inverter Output Voltage 115V AC

Inveter Output Voltage 120V AC

IP Rating IP20

Maximum Operating Temperature 131 Degrees F

Minimum Operating Temperature 5 Degrees F

NEMA Rating NEMA 1

Nominal Output Power 5000W

Number of Outlets 1

Number of Standard USB Ports 0

Number of USB Ports 0

Number of USB-C Ports 0

Outlet Type Quadruple Type 2 - 3 Prong

Output Connection (4) NEMA 5-15R; Terminal Block

Output Current 15 A, 83.3 A, 41.7 A

Output Form Modified Sine Wave

Output Frequency 60 Hz

Output Voltage 120V AC

Overall Depth 16 7/8 in

Overall Height 6 1/8 in

Overall Width 8 in

Package Quantity 1

Peak Output Power 10000W

Phase Single Phase

Power Factor 82 %

Real Power Rating 10,000 W

Specification Specifications: Continuous output power: 5000 Watts;Surge power capability (peak power): 10000 Watts;dc input / operating voltage: 10 to 15 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 10.5 +/- 0.5 Volts;Battery low voltage shutdown: 10.0 +/- 0.5 Volts;No load current: < 0.6 Amps;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -15 degrees Celsius;Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown);AC Output Socket Type: quadruple Type 2 -3 prong;High input voltage protection: 15V-17V;Low input voltage shutdown: 10V;Internal fuse protection;Product size (L x W x H): 16.92X 7.95X 6.1;Weight: unit 18 lbs boxed 20 lbs;UL maximum recommended per outlet 1500W

Temperature Rise 115 Degrees F

Type of Indicator Volt and Amp Meter

Width 7.95
