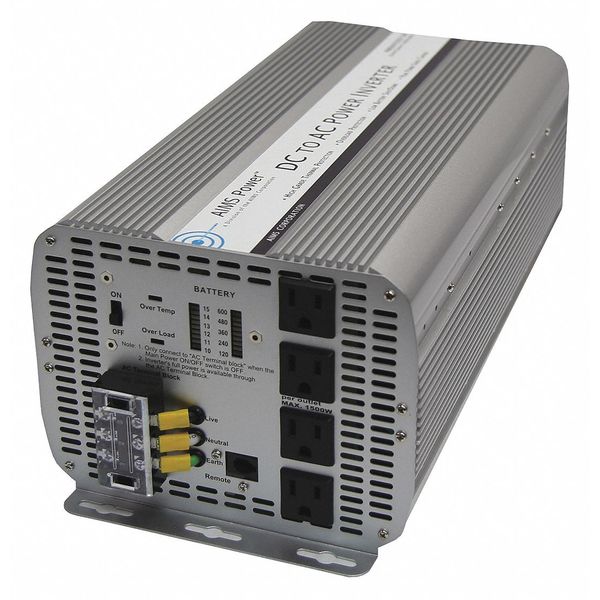

Power Inverter, Aluminum Case, Modified Sine Wave Form, 5000W Nominal Output, 1 Outlets

SKU
Brand Aims Power
Categories
Description Power Inverter,5000W,48VDC to 120VAC
graingerSKU: 43TD31, mscSKU: , zoro_no: G4429820, mongo_id: 65bbe7a09a749db822749f6d

Web Price

$862.49 / each

Product Details

Case Material Aluminum

Country of Origin (subject to change) Taiwan, Province of China

Depth 16.93

Features Features;5000 Watt max continuous power;48 Volt Power Inverter;Modified sine wave;Volt meter on front panel to monitor your battery voltage;Amp meter on front panel to monitor your current use (rate at which battery is drained);AC Direct Connect Terminal;Over Temperature LED indicator;Over Load LED indicator;Quadruple ac receptacle that can be used with any separate spliter to provide even more outlets;On/off switch;Over Temperature protection;Over Load protection;Single cooling fan operation thermally controlled;Internally fuse protected;AC output short circuit protection;Auto reset on most fault conditions;Aluminum case for optimal cooling;Pre-wired for remote on/off switch;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor

Height 6.10

Inverter Input Voltage 39V to 64V DC

Inverter Output Form Modified Sine Wave

Inveter Output Voltage 120V AC

Nominal Output Power 5000W

Number of Outlets 1

Outlet Type Quadruple Type 2 - 3 Prong

Package Quantity 1

Peak Output Power 10000W

Specification Specifications;Continuous output power: 5000 Watts;Surge power capability (peak power): 10,000 Watts;dc input / operating voltage: 39 to 64 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 40 +/- 0.5 Volts;Battery low voltage shutdown: 38 +/- 0.5 Volts;No load current: < 0.2 Amps;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -15 degrees Celsius;Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown);AC Output Socket Type: quadruple Type 2 -3 prong;High input voltage protection: 64 volts;Low input voltage shutdown: 38 volts;Internal fuse protection;Product size (L x W x H): 16.93X 7.95X 6.10;Weight: unit 16.72 lbs boxed 20 lbs;UL maximum recommended per outlet 1500W

Width 7.95
