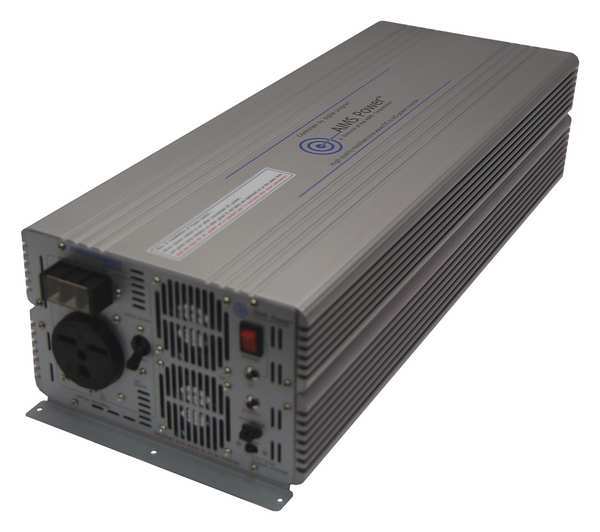

Power Inverter, Aluminum Case, Modified Sine Wave Form, 7000W Nominal Output, 1 Outlets

SKU
Brand Aims Power
Categories
Description Inverter, Features AC Output Short Circuit Protection, Direct Connect Terminal Block for Full Load Applications, Externally Located Re-Settable Circuit Breakers, On/Off Switch, Over Load LED Indicator, Over Load Protection, Over Temperature LED Indicator, Over Temperature Protection, Overload Fail LED - Red, Percent Load Usage LED Bar, Pre-Wired for Remote On/Off Switch, Thermally Controlled Fan, Output Form Modified Sine Wave, DC Connection Input Terminals, Continuous Output Power 7,000 W
graingerSKU: 45TX21, mscSKU: , zoro_no: G2007708, mongo_id: 65bbe9c522d7a989a9976d71

Web Price

$1,699.99 / each

Qty

Product Details

Apparent Power Rating 7,000 W

Application Industrial Applications, Off-Grid Home, Recreation, Solar Power Needs

Case Material Aluminum

Continuous Output Power 7,000 W

Country of Origin (subject to change) Korea, Republic of

DC Connection Post

Depth 21.26

Efficiency 90 %

Features AC Output Short Circuit Protection, Direct Connect Terminal Block for Full Load Applications, Externally Located Re-Settable Circuit Breakers, On/Off Switch, Over Load LED Indicator, Over Load Protection, Over Temperature LED Indicator, Over Temperature Protection, Overload Fail LED - Red, Percent Load Usage LED Bar, Pre-Wired for Remote On/Off Switch, Thermally Controlled Fan

Fused Yes

Height 5.35

Includes Pre-Slotted Mounting Plate

Input Connection Input Terminals

Input Current 345 A

Input Voltage 20 to 30V DC

Inverter DxWxH 21 1/4 in x 8 3/8 in x 5 3/8 in

Inverter Input Voltage 20V to 30V DC

Inverter Output Form Modified Sine Wave

Inverter Output Voltage 230V AC

Inveter Output Voltage 247V AC

IP Rating IP20

Maximum Operating Temperature 163 Degrees F

Minimum Operating Temperature -13 Degrees F

NEMA Rating NEMA 1

Nominal Output Power 7000W

Number of Outlets 1

Number of Standard USB Ports 0

Number of USB Ports 0

Number of USB-C Ports 0

Outlet Type Hardwire

Output Connection NEMA 6-30R; Terminal Block

Output Current 29 A, 58 A

Output Form Modified Sine Wave

Output Frequency 50/60 Hz

Output Voltage 247V AC

Overall Depth 21 1/4 in

Overall Height 5 3/8 in

Overall Width 8 3/8 in

Package Quantity 1

Peak Output Power 14000W

Phase Single Phase

Power Factor 82 %

Real Power Rating 14,000 W

Specification Specifications: The surge duration is electronically controlled and permits up to 9 seconds while the output is between 7000 and 14000 watts. During this time the buzzer will sound until the inverter electronically shuts down.;Continuous output power: 7000 Watts;Surge power capability (peak power): 14000 Watts;dc input / operating voltage: 20-30 Volts;Output voltage: 247 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 50/60 Hz +/- 1 Hz;Battery low voltage alarm: 20 +/- 0.5 Volts;Battery low voltage shutdown: 19.5 +/- 0.5 volts;High input voltage protection 34 +/-0.5 volts;No load current: 200mA;Start up AC amps: 58;Continuous AC amps: 29;Full load efficiency: 90%;Auto Cooling Fan Start at 107 degrees F;Full load maximum operating temperature: 163 degree F;AC Output Socket Type: single 240 volt plug;Internal fuse protection;Product size (D x W x H): 21.26 X 8.43 X 5.35;Weight: 26.5 lbs

Temperature Rise 115 Degrees F

Type of Indicator Green LED

Width 8.43
