Home / Power Inverter, Aluminum Case, Modified Sine Wave Form, 7000W Nominal Output

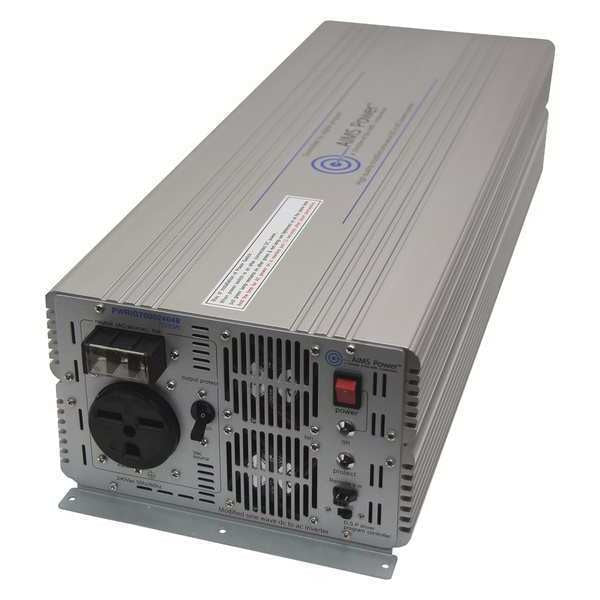

Power Inverter, Aluminum Case, Modified Sine Wave Form, 7000W Nominal Output

SKU
Brand Aims Power
Categories
Description Power Inverter,7000W,48VDC to 240VAC

Web Price

$1,599.99 / each

Product Details

Case Material Aluminum

Country of Origin (subject to change) Korea, Republic of

Depth 21.26

Features Features: 7000W max continuous power;Modified sine wave;Power switch LED is also a self test light Ã¢ÂÂ Green;Overload fail LED Ã¢ÂÂ Red;Over Temperature LED indicator;Over Load LED indicator;1 ac receptacles universal 240 volt;Direct connect terminal block for full load applications;On/off switch;Over Temperature protection;Over Load protection;Thermally controlled fan;DC volt Meter Ã¢ÂÂ Input meter;Percent load usage LED bar;Externally located re-settable circuit breakers;ac output short circuit protection;Aluminum case for optimal cooling;Pre-wired for remote on/off switch;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor

Height 5.35

Inverter Input Voltage 42 to 60 V DC

Inverter Output Form Modified Sine Wave

Inveter Output Voltage 240V AC

Nominal Output Power 7000W

Package Quantity 1

Peak Output Power 14000W

Specification Specifications: Continuous output power: 7000 Watts;Surge power capability (peak power): 14,000 Watts;The surge duration is electronically controlled and permits up to 9 seconds while the output is between 7000 and 14,000 watts. During this time the buzzer will sound until the inverter electronically shuts down.;dc input / operating voltage: 42-60 Volts;Output voltage: 240 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 50/60 Hz +/- 1 Hz;Battery low voltage alarm: 42 +/- 0.5 Volts;Battery low voltage shutdown: 41.5 +/- 0.5 Volts;High input voltage protection 60 +/-0.5 volts;No load current: 0.18 A (fan off) 0.66 A (fan on);Start up AC amps: 58;Continuous AC amps: 29;Full load efficiency: 90%;Auto Cooling Fan Start at 107 degrees F;Full load maximum operating temperature: 154 degree F;AC Output Socket Type: single Type 240 volt plug;Internal fuse protection;Product size (D x W x H): 21.26 X 8.43 X 5.35;Weight: 31 lbs

Width 8.43
