Home / Pure Sine, 2000W, ETL Transfer Switch

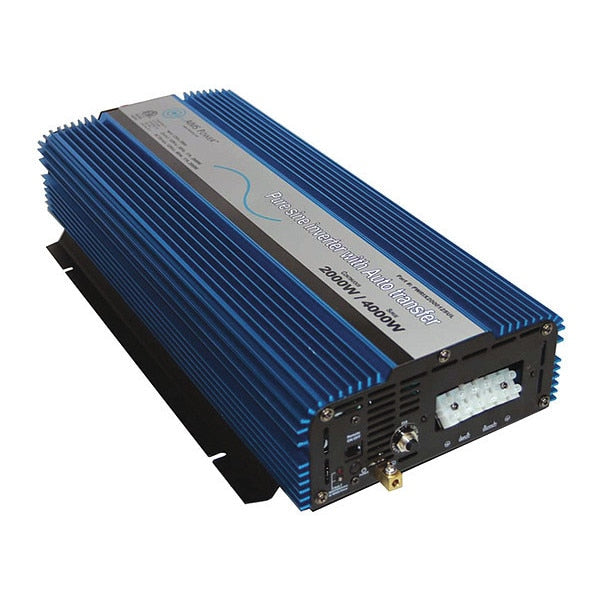

Pure Sine, 2000W, ETL Transfer Switch

SKU
Brand Aims Power
Categories
Description Pure Sine,2000W,ETL Transfer Switch

Web Price

$803.74 / each

Qty

Product Details

Country of Origin (subject to change) China

Features Features: Pure sine;ETL listed and conforms to UL458 standards;Hard wire direct connect terminal block for AC;2000 watt continuous power;4000 watt surge;Over voltage shutdown;Bypass whether inverter is on or off;Under voltage shutdown;Intelligent cooling fan;Automatic transfer switch 25 amps;Conformal coated for marine applications;AC pass through without being turned on or connected to a battery bank;25A resettable AC breaker;No programming or DIP switch changes needed for operation;Remote switch available;Less than 20msec typical transfer time;2 year warranty

Package Quantity 1

Specification Specifications: Optional RemotePart # REMOTEHF Optional Remote on/off switch (new flush mount design)Dip switches to black out the lights if preferred.L x W x H: 3 x 2.06 x 1;2000 watts continuous;4000 watt surge (not recommended for start up applications);Built in automatic transfer switch 25 amp transfer <20 msec;Bypass/throughput = 25 amps. Do not exceed, damage may occur and void warranty.;DC input voltage 10-16V;AC input voltage 120VAC +/-10%;Output voltage 120VAC, 60HZ;Efficiency 86-90%;THD: <3%;Over voltage shutdown 16VDC +/- .5V;Under voltage shutdown 10VDC +/- .5V;Under voltage alarm 10.3VDC +/- .3V;Over temp protection 150 degrees F +/- 5 degrees F;Thermal fan;Pure sine output;No load current: 1.2A;Direct connect terminal block;L x W x H: 21.5 x 9.5 x 3.8;Unit Ã¢ÂÂ 14.4 lbs;Boxed Ã¢ÂÂ 18 lbs
