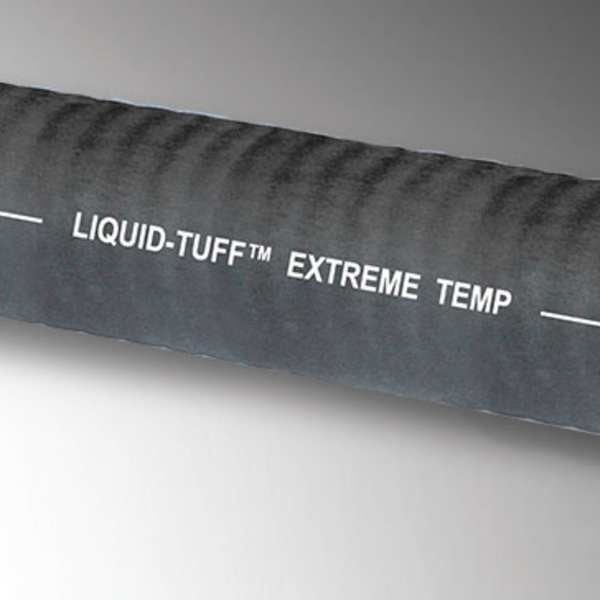

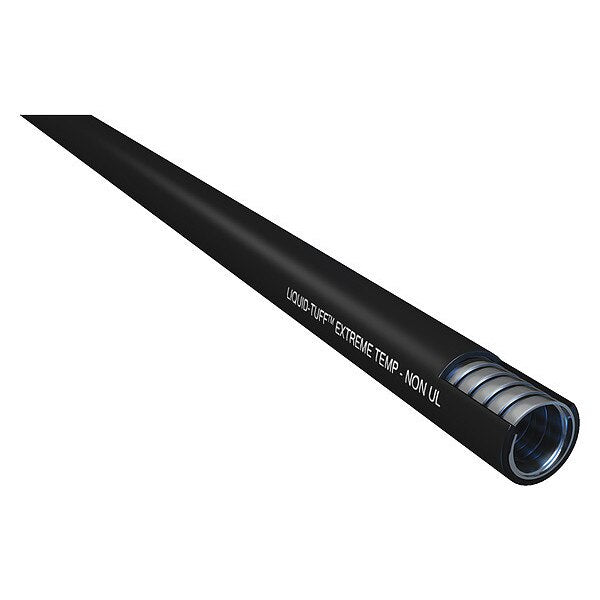

Liquid-Tight Conduit, 1-1/4 Inx50ft, Black

SKU
Brand Allied Tube & Conduit
Categories
Description Liquid-Tight Flex Metal Conduit, Trade Size 1 1/4 in, Bend Radius 4 in, Color Black, Approval Rating UL, Steel, Jacket Material Special Thermoplastic Elastomer, Max. Operating Temp. 302 Degrees F, Min. Operating Temp. -76 Degrees F, Nominal Length 50 ft, Finish Galvanized, Flammability Rating UL 94 HB, Flexibility Flexible, Indoor/Outdoor Usage Indoor/Outdoor, Inside Diameter 1.38 in, Jacket Color Black, Jacketed Yes, Liquid Tight Conduit Application Metallic, Outside Diameter 1.63 in

Web Price

$801.24 / each

Product Details

Application Resists extremes in temperature, Very high operating temperatures, For location requiring halogen free conduits, Industrial applications, Indoor or outdoor locations, Provides mechanical protection for conductors

Approval Rating UL

Bend Radius 4 in

Color Black

Conduit Material Steel

Conduit Trade Size 1 1/4 in

Country of Origin (subject to change) United States

Features LIQUID-TUFFÃ¢ÂÂ¢ Non-UL EXTREME TEMPERATURE Liquidtight Flexible Metal Conduit; High quality thermoplastic rubber jacket - Black; Ability to withstand extremes in temperature; Hot dipped zinc galvanized low carbon steel core; Halogen free; Oil and ozone resistant

Finish Galvanized

Flammability Rating UL 94 HB

Flexibility Flexible

Flexible Conduit Bend Radius 4 in

Flexible Conduit Color Black

Flexible Conduit Core Material Hot Dipped Galvanized Steel

Flexible Conduit Nominal Length 50 ft

Flexible Conduit Usable Temp. Range -76 Degrees to 302 Degrees F

Indoor/Outdoor Usage Indoor/Outdoor

Inside Dia. 1.38 in

Inside Diameter 1.38 in

Inside Diameter (in) 1.380/1.410

Jacket Color Black

Jacket Material Plastic

Jacketed Yes

Liquid Tight Conduit Application Metallic, Extreme Temperature

Material Steel

Material Coating Thermoplastic Elastomer

Max Temperature Rating Dry F 302

Max. Operating Temp. 302 Degrees F

Min Temperature RatingF -76

Min. Operating Temp. -76 Degrees F

Nominal Length 50 ft

Oil Resistant Yes

Outside Dia. 1.63 in

Outside Diameter 1.63 in

Outside Diameter (in) 1.630/1.660 IN

Package Quantity 1

Part Length (ft) 50

Resistance Properties Oil Resistant, Ozone Resistant

Series 6800

Special Features Extreme Temperature, Utilizes The 6100 Series Very Flexible Core, Thermoplastic Rubber Jacket is Virtually Unaffected By Temperature Extremes and Contain No Halogens, The Material Has A Flammability Rating of Ul 94-HB and is UV Stabilized, Excellent for Areas of High and Low Heat with Little Ventilation

Special Properties Oil Resistant, Ozon Resistant

Standards Meets UL 94 HB

Surface Finish Thermoplasic Elastomer

Trade Size 1 1/4 in

Trade Size (in) 1-1/4

Usable Temperature Range -76 Degrees F to 302 Degrees F

Wet Location Yes
