Home / Liquid Tight Flex Metal Conduit, 1/2 in Size, 3 in Bend Radius, 100 ft L, Steel, Gray, 6200 Series

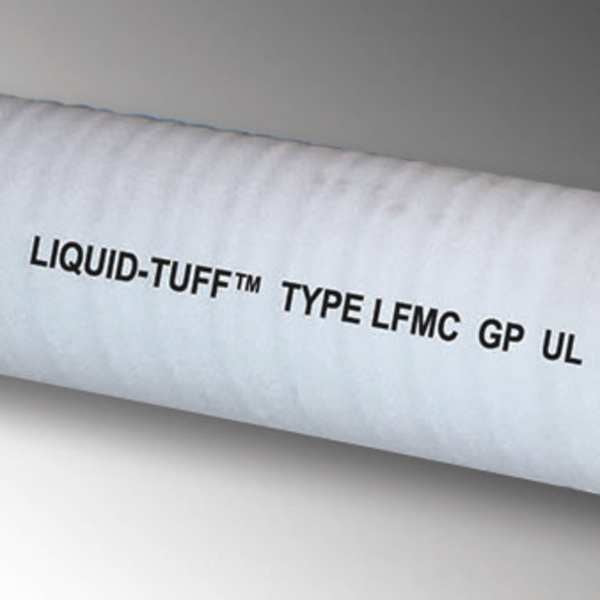

Liquid Tight Flex Metal Conduit, 1/2 in Size, 3 in Bend Radius, 100 ft L, Steel, Gray, 6200 Series

SKU
Brand Allied Tube & Conduit
Categories
Description Liquid-Tight Flex Metal Conduit, Trade Size 1/2 in, Bend Radius 3 in, Color Gray, Approval Rating CSA, NFPA, UL, Steel, Jacket Material Flame Retardant PVC, Max. Operating Temp. 176 Degrees F, Min. Operating Temp. -30 Degrees F, Nominal Length 100 ft, Finish Galvanized, Flammability Rating UL 1660, Flexibility Flexible, Indoor/Outdoor Usage Outdoor Only, Inside Diameter 0.62 in, Jacket Color Gray, Jacketed Yes, Liquid Tight Conduit Application Metallic, Outside Diameter 0.82 in
graingerSKU: , mscSKU: , zoro_no: G1293765, mongo_id: 65bbe96a22d7a989a99531a1

Web Price

$213.74 / each

Qty

Product Details

Application Direct burial in earth, Concrete embedment, Sunlight and weather exposure, Suitable for grounding per NECÃÂ® 250.118(6), 3/8 - 1 1/4, Hazardous location per NECÃÂ® 501, Raised computer room floors per NECÃÂ® 645.5(D), Service entrance wiring up to 6 feet per NECÃÂ® 230.43(15), Feeders and services for marina and boat yards

Approval Rating CSA, NFPA, UL

Bend Radius 3 in

Color Gray

Conduit Material Steel

Conduit Trade Size 1/2 in

Country of Origin (subject to change) United States

Features LIQUID-TUFFÃ¢ÂÂ¢ Liquidtight Flexible Steel Conduit UL & CSA; UL bonding strip 3/8 - 1-1/4 for grounding; UL Liquidtight all sizes; Sunlight resistant; Flame retardant PVC jacket; Hot dipped zinc galvanized low carbon steel core

Finish Galvanized

Flammability Rating UL 1660

Flexibility Flexible

Flexible Conduit Bend Radius 3 in

Flexible Conduit Color Gray

Flexible Conduit Core Material Hot Dipped Galvanized Steel

Flexible Conduit Nominal Length 100 ft

Flexible Conduit Usable Temp. Range -30 Degrees to 176 Degrees F

Hazardous Location Class es Class I Div 2 NECÃÂ® 501.10(B)(2)(4), Class II Div 1 NECÃÂ® 502.10(A)(2)(2), Class II Div 2 NECÃÂ® 502.10(B)(2), Class III Div 1 NECÃÂ® 503.10(A)(3)(2) and Class III Div 2 NECÃÂ® 503.10(B).

Indoor/Outdoor Usage Outdoor Only

Inside Dia. 0.622 in

Inside Diameter 0.62 in

Inside Diameter (in) 0.622/0.642

Jacket Color Gray

Jacket Material Plastic

Jacketed Yes

Length 100 ft

Liquid Tight Conduit Application Metallic, General Purpose

Material Steel

Material Coating PVC

Max Temperature Rating Dry F 176

Max. Operating Temp. 176 Degrees F

Min Temperature RatingF -40

Min. Operating Temp. -30 Degrees F

Nominal Length 100 ft

Oil Resistant Yes

Outside Dia. 0.82 in

Outside Diameter 0.82 in

Outside Diameter (in) 0.820/0.840 IN

Package Quantity 1

Part Length (ft) 100

Resistance Properties Oil Resistant, UV Resistant

Series 6200

Special Features The 1-1/2 through 4-inch trade sizes are designed with a fully interlocked strip, The 3/8 through 1-1/4 inch trade sizes are Square Lock formed and include an integral bonding strip of copper that is enclosed within the convolutions throughout their entire length

Special Properties Oil Resistant

Standards UL 1660 & CSA 22.2 No. 227.2 Type B, Conforms to The Requirements Of Section 14.5.5 Of The Electrical Standard For Industrial Machinery NFPA-79, RoHS and WEEE Compliant

Surface Finish PVC

Trade Size 1/2 in

Trade Size (in) 1/2

Usable Temperature Range -30 Degrees F to 176 Degrees F

Wet Location Yes
