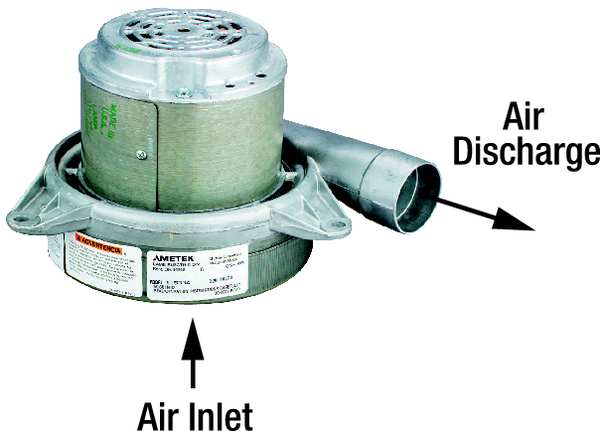

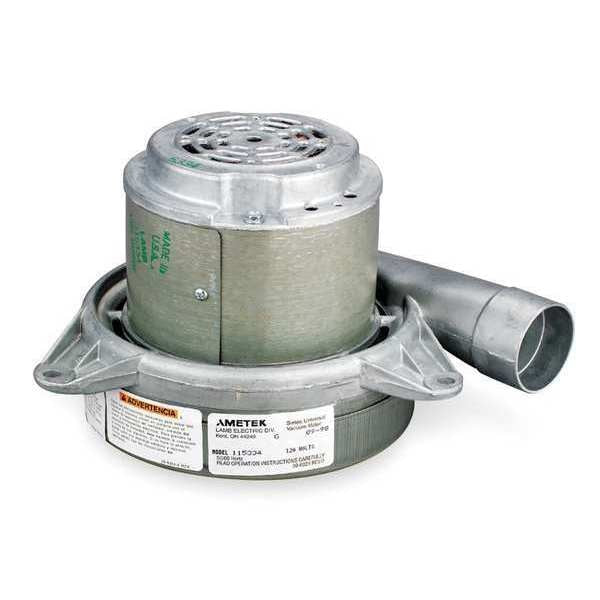

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd

SKU
Brand Ametek Lamb
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 19,980, No. of Speeds 1, 240V AC Voltage, Full Load Amps 5.9, Motor/Blower Type Bypass, Max. Amps 5.9 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 338 W, Vacuum Rating 110, CFM @ 2-In. Orifice 97.8 cfm, Mounting Bracket Material Aluminum
graingerSKU: 4M887, mscSKU: , zoro_no: G0673477, mongo_id: 65bbe6473aaddbd5a901cc84

Web Price

$411.24 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 700 hr

Bearings Ball

Blower Stages 2

Body Dia. 7.2 in

CFM @ 2-In. Orifice 97.8 cfm

Country of Origin (subject to change) Mexico

Discharge Tangential Bypass

Duty Intermittent

Duty Cycle Intermittent

Footnotes 68

Full Load Amps 5.9

Full Load Amps @ 50Hz 5.9

Hz_ 60/50

Inlet Tube Dia. 2 in

Ins. Class A

Max. Air Watts 338 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 5.9 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball

Motor Design Universal AC/DC

Motor Enclosure Design Open

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection None

Motor/Blower Type Bypass

Mounting Bracket Material Aluminum

Mounting Brackets Metal

Nameplate RPM 19,980

No. of Speeds 1

Overall Height 6 3/16 in

Overall Length 6 1/8 in

Package Quantity 1

Phase Single

Replacement Brushes 2UV77

Standards UL recognized, category PRGY2 (E47185)

Vacuum (H2O Sealed) 109.6

Vacuum Rating 110

Voltage 240V AC

Voltage @ 50Hz 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
