Home / Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd

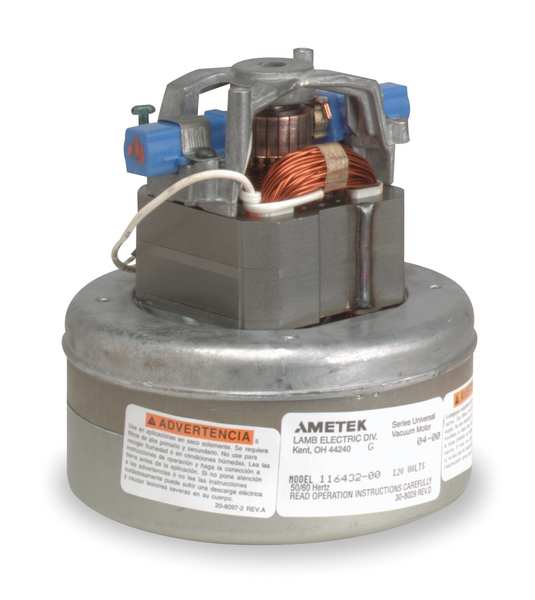

Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd

SKU
Brand Ametek Lamb
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 24,659, No. of Speeds 1, 240V AC Voltage, Full Load Amps 4.2, Non-Standard Frame, Motor/Blower Type Thru-Flow, Max. Amps 4.4 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open Dripproof, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 281 W, Vacuum Rating 98.6, CFM @ 2-In. Orifice 106.5 cfm
graingerSKU: null, mscSKU: null, zoro_no: G2691963, mongo_id: 65bbe6243aaddbd5a900e6dc

Web Price

$126.24 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 500 hr

Bearings Ball

Blower Stages 2

Body Dia. 5.7 in

CFM @ 2-In. Orifice 106.5 cfm

Country of Origin (subject to change) Mexico

Discharge Thru-Flow

Duty Intermittent

Duty Cycle Intermittent

Footnotes 68

Frame Non-Standard

Full Load Amps 4.2

Hz_ 60/50

Inlet Tube Dia. Not Applicable

Ins. Class A

Max. Air Watts 281 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 4.4 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball, Sleeve

Motor Design Universal AC/DC

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open Dripproof

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection None

Motor/Blower Type Thru-Flow

Mounting Bracket Material Aluminum

Mounting Brackets Metal

Nameplate RPM 24,659

No. of Speeds 1

Overall Height 5 25/32 in

Overall Length 5 3/4 in

Package Quantity 1

Phase Single

Replacement Brushes 152F63

Standards UL (E47185)

Vacuum (H2O Sealed) 87.8

Vacuum Rating 98.6

Voltage 240V AC

Voltage @ 50Hz 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
