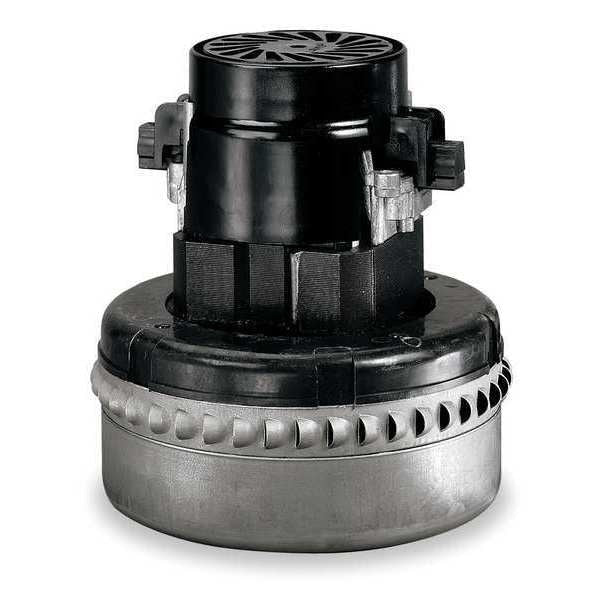

Vacuum Motor/Blower, Peripheral, 2 Stage, 1 Speed, Acustek

SKU
Brand Ametek
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 24,850, No. of Speeds 1, 240V AC Voltage, Full Load Amps 4.6, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 3 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 349 W, Vacuum Rating 94.2, CFM @ 2-In. Orifice 110.5 cfm, Motor Bearings Ball
graingerSKU: 4M952, mscSKU: , zoro_no: G1782173, mongo_id: 65bbe77c9a749db82273e0cb

Web Price

$172.49 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 500 hr

Bearing Protection Air Sealed

Bearings Ball

Blower Stages 2

Body Dia. 5.7 in

CFM @ 2-In. Orifice 110.5 cfm

Country of Origin (subject to change) Mexico

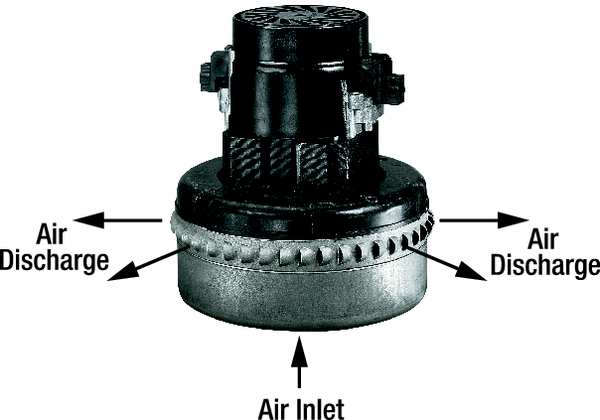

Discharge Peripheral Bypass

Duty Intermittent

Duty Cycle Intermittent

Footnotes 69, 72, 76

Frame Non-Standard

Full Load Amps 4.6

Full Load Amps @ 50Hz 4.9

Hz_ 60/50

Inlet Tube Dia. Not Applicable

Ins. Class A

Max. Air Watts 349 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 3 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball

Motor Design Universal AC/DC

Motor Enclosure Design Open

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection None

Motor/Blower Type Bypass

Mounting Brackets Thermoset

Nameplate RPM 24,850

No. of Speeds 1

Overall Height 7 in

Overall Length 7 1/16 in

Package Quantity 1

Phase Single

Replacement Brushes 152F63

Standards UL Recognized (E47185)

Vacuum (H2O Sealed) 95.4

Vacuum Rating 94.2

Voltage 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
