Home / Vacuum Motor/Blower, Peripheral, 2 Stage, 1 Speed, Acustek

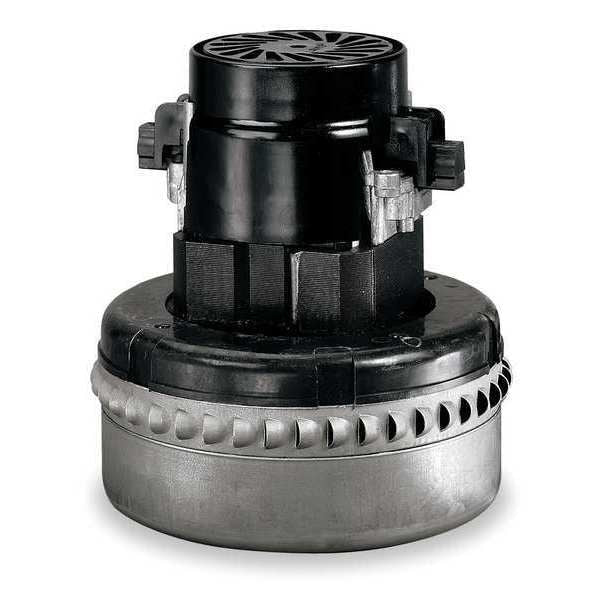

Vacuum Motor/Blower, Peripheral, 2 Stage, 1 Speed, Acustek

SKU
Brand Ametek
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 24,515, No. of Speeds 1, 240V AC Voltage, Full Load Amps 6.4, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 4 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 391 W, Vacuum Rating 100.4, CFM @ 2-In. Orifice 128.7 cfm
graingerSKU: 4M951, mscSKU: , zoro_no: G1164886, mongo_id: 65bbe68b3aaddbd5a90395d2

Web Price

$173.74 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 500 hr

Bearings Ball

Blower Stages 2

Body Dia. 5.7 in

CFM @ 2-In. Orifice 128.7 cfm

Country of Origin (subject to change) Mexico

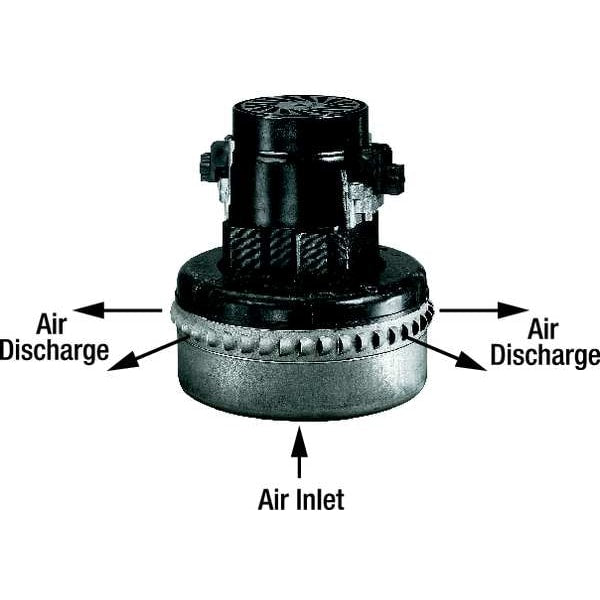

Discharge Peripheral Bypass

Duty Intermittent

Duty Cycle Intermittent

Footnotes 69

Frame Non-Standard

Full Load Amps 6.4

Full Load Amps @ 50Hz 5.7

Hz_ 60/50

Inlet Tube Dia. Not Applicable

Ins. Class A

Max. Air Watts 391 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 4 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball

Motor Design Universal AC/DC

Motor Enclosure Design Open

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection None

Motor/Blower Type Bypass

Mounting Bracket Material Aluminum

Mounting Brackets Thermoset

Nameplate RPM 24,515

No. of Speeds 1

Overall Height 7 in

Overall Length 7 1/16 in

Package Quantity 1

Phase Single

Replacement Brushes 152F63

Standards UL Recognized (E47185)

Vacuum (H2O Sealed) 97.8

Vacuum Rating 100.4

Voltage 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
