Home / Vacuum Motor/Blower, Tangential, 3 Stage, 1 Speed, Acustek

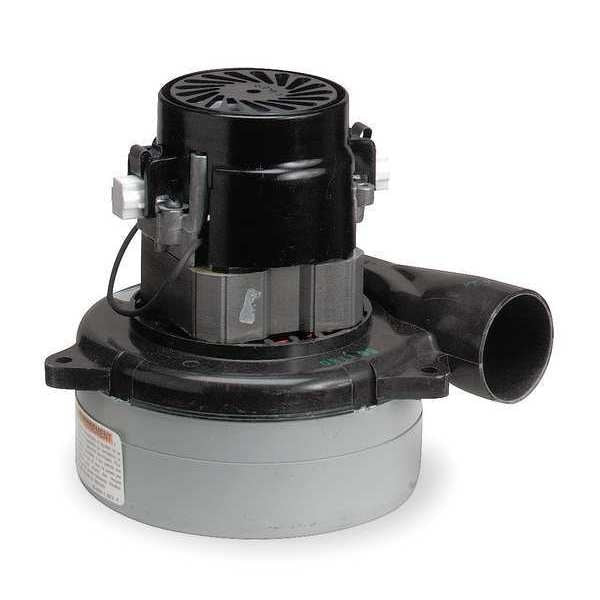

Vacuum Motor/Blower, Tangential, 3 Stage, 1 Speed, Acustek

SKU
Brand Ametek
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,930, No. of Speeds 1, 240V AC Voltage, Full Load Amps 5.3, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 5.4 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 348 W, Vacuum Rating 116.7, CFM @ 2-In. Orifice 94 cfm
graingerSKU: 4M944, mscSKU: , zoro_no: G2631544, mongo_id: 65bbe7a79a749db82274c5a4

Web Price

$237.49 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 500 hr

Bearings Ball

Blower Stages 3

Body Dia. 5.7 in

CFM @ 2-In. Orifice 94 cfm

Country of Origin (subject to change) Mexico

Discharge Tangential Bypass

Duty Intermittent

Duty Cycle Intermittent

Footnotes 69

Frame Non-Standard

Full Load Amps 5.3

Hz_ 60/50

Inlet Tube Dia. 1 7/8 in

Ins. Class A

Max. Air Watts 348 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 5.4 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball

Motor Design Universal AC/DC

Motor Enclosure Design Open

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection None

Motor/Blower Type Bypass

Mounting Bracket Material Aluminum, Plastic

Mounting Brackets Thermoset

Nameplate RPM 23,930

No. of Speeds 1

Overall Height 5 25/32 in

Overall Length 7 13/16 in

Package Quantity 1

Phase Single

Replacement Brushes 152F63

Standards UL (E47185)

Vacuum (H2O Sealed) 115.5

Vacuum Rating 116.7

Voltage 240V AC

Voltage @ 50Hz 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
