Home / Vacuum Mtr/Blwr, Peripheral, 3 Stge, 1 Spd

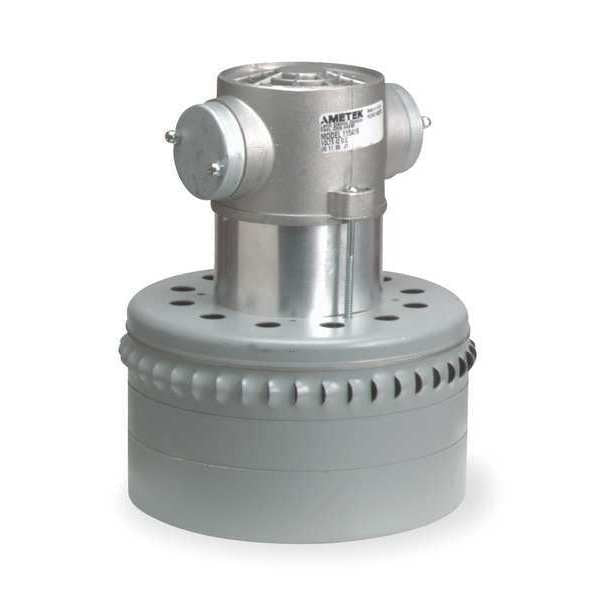

Vacuum Mtr/Blwr, Peripheral, 3 Stge, 1 Spd

SKU
Brand Ametek
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 14,300, No. of Speeds 1, 240V AC Voltage, Full Load Amps 5.0, Motor/Blower Type Bypass, Max. Amps 3.2 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 354 W, Vacuum Rating 84.5, CFM @ 2-In. Orifice 122 cfm, Mounting Bracket Material Aluminum
graingerSKU: 4M877, mscSKU: , zoro_no: G0869635, mongo_id: 65bbe7d13aaddbd5a90ba6ab

Web Price

$804.99 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 1,000 hr

Bearings Ball

Blower Stages 3

Body Dia. 7.5 in

CFM @ 2-In. Orifice 122 cfm

Country of Origin (subject to change) Mexico

Discharge Peripheral Bypass

Duty Intermittent

Duty Cycle Intermittent

Full Load Amps 5.0

Full Load Amps @ 50Hz 5.2

Hz_ 60/50

Inlet Tube Dia. Not Applicable

Ins. Class A

Max. Air Watts 354 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 3.2 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball

Motor Design Universal AC/DC

Motor Enclosure Design Open

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection None

Motor/Blower Type Bypass

Mounting Bracket Material Aluminum

Mounting Brackets Metal

Nameplate RPM 14,300

No. of Speeds 1

Overall Height 9 7/16 in

Overall Length 9 7/16 in

Package Quantity 1

Phase Single

Replacement Brushes 2UV76

Standards UL recognized (E47185)

Vacuum (H2O Sealed) 84.2

Vacuum Rating 84.5

Voltage 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
