Home / Vacuum Mtr/Blwr, Tangential, 1 Stge, 1 Spd

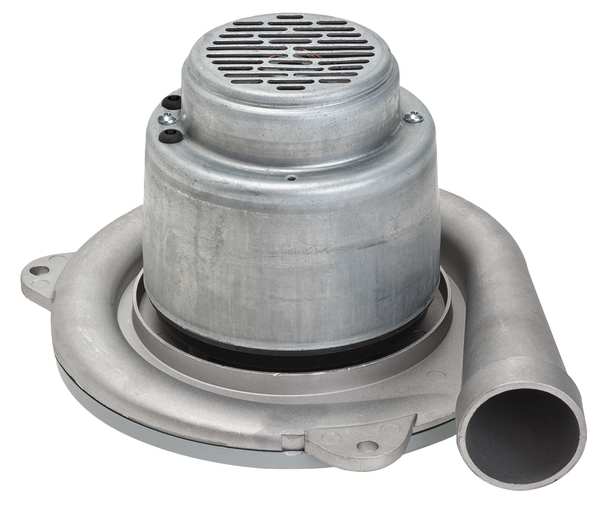

Vacuum Mtr/Blwr, Tangential, 1 Stge, 1 Spd

SKU
Brand Ametek
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, No. of Speeds 1, 240V AC Voltage, Full Load Amps 7.8, Motor/Blower Type Bypass, Max. Amps 7.8 A, 60 Hz, Motor Thermal Protection Manual, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 717 W, Vacuum Rating 115.3, CFM @ 2-In. Orifice 166 cfm, Mounting Bracket Material Aluminum, Motor Bearings Ball
graingerSKU: 6VMW7, mscSKU: , zoro_no: G3557741, mongo_id: 65bbe7ab3aaddbd5a90ac131

Web Price

$227.49 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 1,500 hr

Bearing Protection Yes

Bearings Ball

Blower Stages 1

Body Dia. 8.4 in

CFM @ 2-In. Orifice 166 cfm

Country of Origin (subject to change) Mexico

Discharge Tangential Bypass

Duty Intermittent

Duty Cycle Intermittent

Full Load Amps 7.8

Hz_ 60

Ins. Class A

Max. Air Watts 717 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 7.8 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball

Motor Design Universal AC/DC

Motor Enclosure Design Open

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection Manual

Motor/Blower Type Bypass

Mounting Bracket Material Aluminum

Mounting Brackets Aluminum

No. of Speeds 1

Nominal Efficiency 45 %

Overall Height 6 in

Package Quantity 1

Phase Single

Replacement Brushes Mfr. No. 50-5960

Standards UL Recognized (E47185)

Vacuum (H2O Sealed) 110.0

Vacuum Rating 115.3

Voltage 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
