Home / Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd

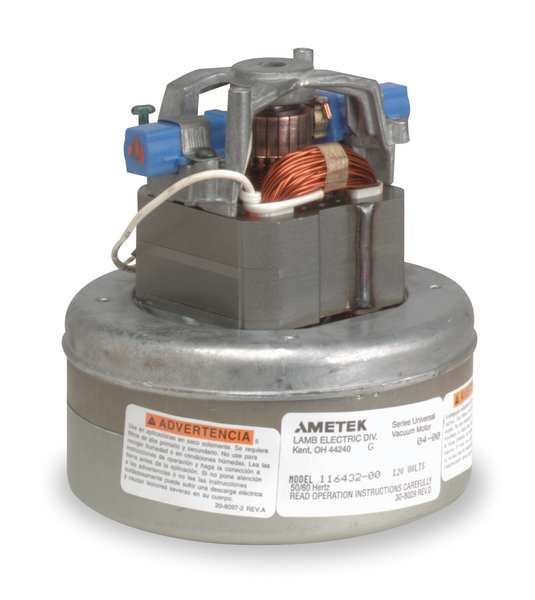

Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd

SKU
Brand Ametek
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 29,000, No. of Speeds 1, 240V AC Voltage, Full Load Amps 4.8, Non-Standard Frame, Motor/Blower Type Thru-Flow, Max. Amps 4.8 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 346 W, Vacuum Rating 103, CFM @ 2-In. Orifice 109 cfm
graingerSKU: 4M902, mscSKU: , zoro_no: G1326114, mongo_id: 65bbe7133aaddbd5a9072b57

Web Price

$168.74 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 500 hr

Bearings Ball

Blower Stages 2

Body Dia. 5.7 in

CFM @ 2-In. Orifice 109 cfm

Country of Origin (subject to change) Mexico

Discharge Thru-Flow

Duty Intermittent

Duty Cycle Intermittent

Footnotes 68

Frame Non-Standard

Full Load Amps 4.8

Hz_ 60/50

Inlet Tube Dia. Not Applicable

Ins. Class A

Max. Air Watts 346 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 4.8 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball

Motor Design Universal AC/DC

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection None

Motor/Blower Type Thru-Flow

Mounting Bracket Material Aluminum

Mounting Brackets Metal

Nameplate RPM 29,000

No. of Speeds 1

Overall Height 5 25/32 in

Overall Length 6 3/16 in

Package Quantity 1

Phase Single

Replacement Brushes Mfr. No. 33508

Standards UL (E47185)

Vacuum (H2O Sealed) 98.3

Vacuum Rating 103

Voltage 240V AC

Voltage @ 50Hz 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
