Home / Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd

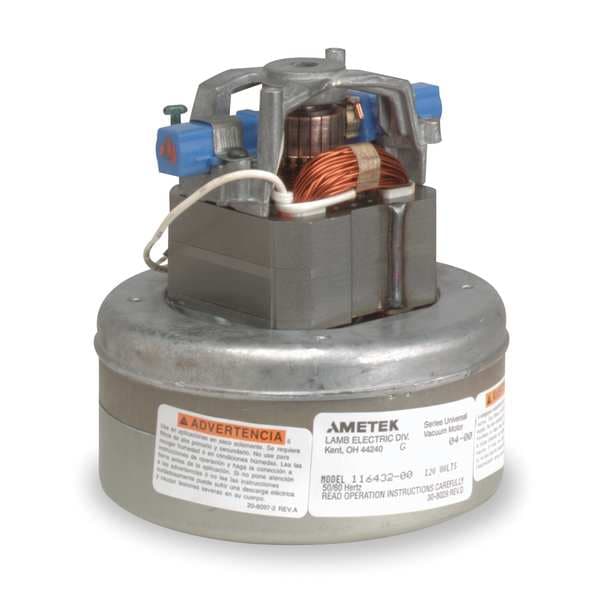

Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd

SKU
Brand Ametek
Categories
Description Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 25,410, No. of Speeds 1, 240V AC Voltage, Full Load Amps 5.2, Non-Standard Frame, Motor/Blower Type Thru-Flow, Max. Amps 5.3 A, 60/50 Hz, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 343 W, Vacuum Rating 101.5, CFM @ 2-In. Orifice 114.8 cfm
graingerSKU: 4M900, mscSKU: , zoro_no: G3371706, mongo_id: 65bbe87822d7a989a98f8092

Web Price

$169.99 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Average Life 500 hr

Bearings Ball

Blower Stages 2

Body Dia. 5.7 in

CFM @ 2-In. Orifice 114.8 cfm

Country of Origin (subject to change) Mexico

Discharge Thru-Flow

Duty Intermittent

Duty Cycle Intermittent

Footnotes 68

Frame Non-Standard

Full Load Amps 5.2

Hz_ 60/50

Inlet Tube Dia. Not Applicable

Ins. Class A

Max. Air Watts 343 W

Max. Ambient Temp. 40 Degrees C

Max. Amps 5.3 A

Motor Application Universal AC/DC Motor

Motor Bearings Ball

Motor Design Universal AC/DC

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open

Motor Mounting Position All Angle

Motor Mounting Type Lug

Motor Thermal Protection Auto

Motor/Blower Type Thru-Flow

Mounting Bracket Material Aluminum

Mounting Brackets Metal

Nameplate RPM 25,410

No. of Speeds 1

Overall Height 5 25/32 in

Overall Length 6 5/8 in

Package Quantity 1

Phase Single

Replacement Brushes 152F63

Standards CSA (LR31393), UL (E47185)

Vacuum (H2O Sealed) 98.9

Vacuum Rating 101.5

Voltage 240V AC

Voltage @ 50Hz 240V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
