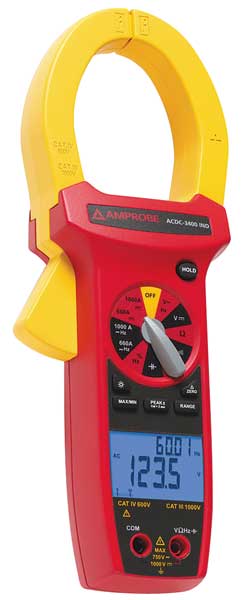

Home / Clamp Meter, Backlit, 1,000 A, 2.0 in (51 mm) Jaw Capacity, Cat IV 600V Safety Rating

Clamp Meter, Backlit, 1,000 A, 2.0 in (51 mm) Jaw Capacity, Cat IV 600V Safety Rating

SKU
Brand Amprobe
Categories
Description Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 750 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No
graingerSKU: 4FFK1, mscSKU: 51314060, zoro_no: G0942916, mongo_id: 65bbe82122d7a989a98db22f

Web Price

$864.99 / each

Qty

Product Details

AC Current Accuracy +/-2.0% + 5 Digits

AC Response TRMS

AC Response Calculation TRMS

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/- (1.5% rdg + 8 dgts)

Basic AC Voltage Accuracy +/- (1.5% rdg + 8 dgts)

Basic DC Current Accuracy +/- (0.5% rdg + 2 dgts)

Basic DC Voltage Accuracy +/- (0.5% rdg + 2 dgts)

Batteries Included Yes

Battery Access Yes

Battery Size 9V

Battery Type 9V

Bluetooth Compatible No

Calibration Certificate Not Included

Calibration Certificate Included No

Calibration Frequency 50 to 400 Hz

Capacitance 6.6

Capacitance Measurement Accuracy Not Applicable

Clamp Meter Jaw Style Clamp On

Country of Origin (subject to change) Taiwan, Province of China

Counts 6,600

Current Leakage Testing No

Data Hold Yes

Data Logging Yes

Digital/Analog Digital

Diode Test Yes

Display Backlit

Display Type Backlit

Dustproof No

Features Data Logging

Frequency Counter 50 kHz to 1 kHz

Frequency Measurement Accuracy +/- (0.1% rdg + 5 dgts)

Includes ACDC-3400 IND, Deluxe Carrying Case, Test Leads

Instrument Counts 6,600

Instrument Safety Rating CAT III 1000V; CAT IV 600V

Intrinsically Safe No

Jaw Capacity 2.0 in (51 mm)

Jaw Opening 2 in

Jaw Style Clamp-Jaw

Manufacturers Warranty Length 1 yr

Max. AC Amps 1,000

Max. AC Volts 750 V

Max. DC Amps 1,000

Max. DC Volts 1,000 V

Max. Ohms 66

Maximum AC Current Measurement 1,000 A

Maximum AC Voltage Measurement 750 V

Maximum Capacitance Measurement 6.6 mF

Maximum DC Current Measurement 1,000 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 1 MHz

Maximum Resistance Measurement 66 megaohm

Minimum AC Current Measurement 66 A

Minimum AC Voltage Measurement 660 V

Minimum Capacitance Measurement 6.6 nF

Minimum DC Current Measurement 660 A

Minimum DC Voltage Measurement 660 V

Minimum Frequency Measurement 66 Hz

Operating Temp. 32 Degrees to 122 Degrees F

Package Quantity 1

Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency

Peak Hold Yes

Removable Screen No

Resistance Measurement Accuracy Not Applicable

Safety Rating CAT III 1000V, CAT IV 600V

Special Features Backlight Makes it Easy to Read Even in Dark Conditions, Relative Zero Displays the Difference Between the Actual Reading and A Stored Reference Value and May be used with Any Function or Range

Thermal Imaging No

Waterproof No
