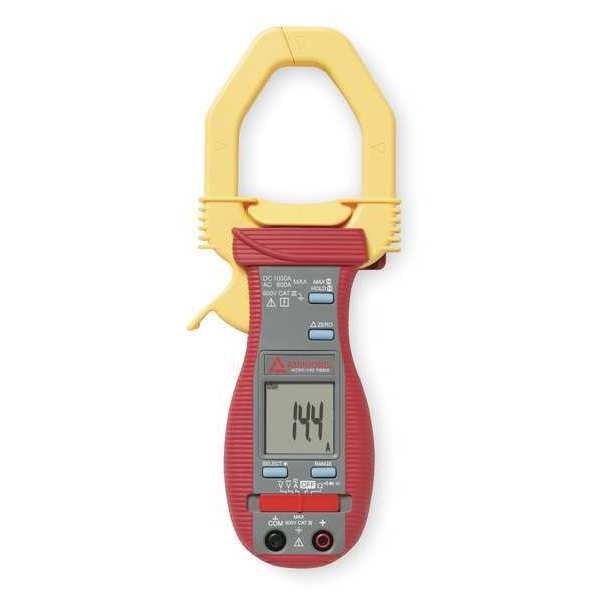

Clamp Meter, Backlit, 800 A, 2.0 in (51 mm) Jaw Capacity, Cat III 600V Safety Rating

SKU
Brand Amprobe
Categories
Description Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 800 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Inrush AC Current, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No
graingerSKU: 2AUZ9, mscSKU: 51314052, zoro_no: G2802457, mongo_id: 65bbea1722d7a989a99958cb

Web Price

$379.99 / each

Qty

Product Details

AC Current Accuracy +/-2.0% + 5 Digits

AC Response TRMS

AC Response Calculation TRMS

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Basic AC Current Accuracy 1.5% + 5d 1

Basic AC Voltage Accuracy 1.0% + 4d

Basic DC Current Accuracy 1.5% + 4d

Basic DC Voltage Accuracy 0.3% + 3d

Batteries Included Yes

Battery Access Yes

Battery Size AAA

Battery Type AAA

Bluetooth Compatible No

Calibration Certificate Not Included

Calibration Certificate Included No

Calibration Frequency 40 to 100 Hz

Capacitance 3,000

Capacitance Measurement Accuracy 3.5% + 6d

Clamp Meter Jaw Style Clamp On

Country of Origin (subject to change) Taiwan, Province of China

Counts 4,000

Current Leakage Testing No

Data Hold Yes

Data Logging Yes

Digital/Analog Digital

Diode Test Yes

Display Backlit

Display Type Backlit

Dustproof No

Features Data Logging

Frequency Counter 40 to 100 Hz (AC Current); 50 to 500 Hz (AC Voltage)

Frequency Measurement Accuracy Not Applicable

Includes ACDC-100 TRMS, Deluxe Carrying Case, Test Leads

Instrument Counts 4,000

Instrument Safety Rating CAT III 600V

Intrinsically Safe No

Jaw Capacity 2.0 in (51 mm)

Jaw Opening 2 in

Jaw Style Clamp-Jaw

Manufacturers Warranty Length 1 yr

Max. AC Amps 800

Max. AC Volts 600 V

Max. DC Amps 1,000

Max. DC Volts 600 V

Max. Ohms 40

Maximum AC Current Measurement 800 A

Maximum AC Voltage Measurement 600 V

Maximum Capacitance Measurement 3,000 uF

Maximum DC Current Measurement 1,000 A

Maximum DC Voltage Measurement 600 V

Maximum Frequency Measurement 100 Hz

Maximum Resistance Measurement 40 megaohm

Minimum AC Current Measurement 400 A

Minimum AC Voltage Measurement 400 V

Minimum Capacitance Measurement 500 nF

Minimum DC Current Measurement 400 A

Minimum DC Voltage Measurement 400 mV

Minimum Resistance Measurement 400 ohm

Operating Temp. 32 Degrees to 104 Degrees F

Package Quantity 1

Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Inrush AC Current, Resistance

Peak Hold Yes

Removable Screen No

Resistance Measurement Accuracy 0.6% + 4d

Safety Rating CAT III 600V

Special Features Continuity Beeper Quickly Identifies Shorts and Opens, Max Capture Function Measures Inrush Current (30 Ms Response), Relative Zero Mode Displays the Difference Between the Actual Reading and A Stored Reference Value and May be used with Any Function or Range, Rubber Over-Molded Case Absorbs Shock and Provides Built-In Probe Storage, True-RMS

Thermal Imaging No

Waterproof No
