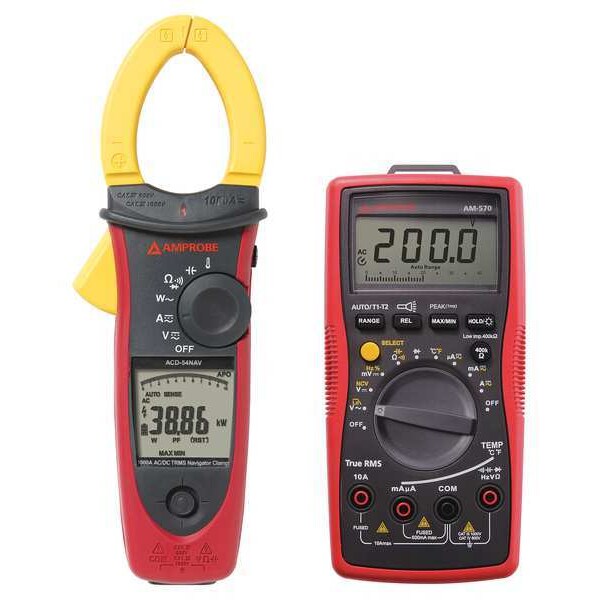

Clamp-On Power Meter Kit, LCD, 1000kW, 1000 A, Cat IV 600V, Cat III 1000V Safety Rating

SKU
Brand Amprobe
Categories
Description Digital Multimeter Clamp On Kit, Test Instrument Included Clamp Meter, Digital Multimeter, Includes 9V(6F22) Battery, Banana K-Type Thermocouple, Batteries, Carrying Case, Temperature Adapter, Test Leads, (2) Type K Probe, Velcro Strap, Digital Multimeter Maximum AC Current Measurement 10 A, Digital Multimeter Maximum AC Voltage Measurement 1,000 V, Digital Multimeter Maximum DC Current Measurement 10 A, Digital Multimeter Maximum DC Voltage Measurement 1,000 V, Clamp Meter Data Hold Yes
graingerSKU: 7DZ52, mscSKU: , zoro_no: G2608818, mongo_id: 65bbe8e822d7a989a9922d97

Web Price

$1,276.24 / each

Qty

Product Details

Additional Kit Components Carrying Case, Thermocouple Adapter

Calibration Frequency 20 Hz to 10 KHz

Clamp Meter AC Response Calculation TRMS

Clamp Meter Data Hold Yes

Clamp Meter Display Type Analog Bar Graph; Backlit

Clamp Meter Instrument Counts 1,000

Clamp Meter Instrument Safety Rating CAT III 1000V, CAT IV 600V

Clamp Meter Jaw Style Clamp On

Clamp Meter Manufacturer Part Number 3729989

Clamp Meter Max. AC Current 1,000 A

Clamp Meter Max. AC Voltage 1,000 V

Clamp Meter Max. DC Current 1,000 A

Clamp Meter Max. DC Voltage 1,000 V

Clamp Meter Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Power Factor, Resistance, Total Harmonic Distortion

Country of Origin (subject to change) Multiple

Counts 10,000

Current Accuracy +/-1.5% Rdg +5 Digits

Data Logging No

Digital Multimeter AC Response Calculation TRMS

Digital Multimeter Audible Continuity Yes

Digital Multimeter Data Hold Yes

Digital Multimeter Display Type Backlit LCD

Digital Multimeter Instrument Counts 6,000

Digital Multimeter Instrument Safety Rating CAT III 1000V, CAT IV 600V

Digital Multimeter Manufacturer Part Number 4210340

Digital Multimeter Maximum AC Current Measurement 10 A

Digital Multimeter Maximum AC Voltage Measurement 1,000 V

Digital Multimeter Maximum DC Current Measurement 10 A

Digital Multimeter Maximum DC Voltage Measurement 1,000 V

Digital Multimeter Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Duty Cycle, Frequency, Resistance

Display LCD

Includes 9V(6F22) Battery, Banana K-Type Thermocouple, Batteries, Carrying Case, Temperature Adapter, Test Leads, (2) Type K Probe, Velcro Strap

Jaw Opening 1.77 in

Manufacturers Warranty Length 1 yr

Max. AC Amps 1,000

Max. AC Volts 1,000

Max. DC Amps 1,000

Max. DC Volts 1,000

Max. Resistance 100 K Ohms

Max. Watts 1,000 kW

Number of Batteries Included 1

Operating Temp. Range 32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C)

Package Quantity 1

Peak Capture Yes

Power Accuracy +/-2.5% Rdg +5 Digits

Power Factor -1.00 to 1.00

Power Source (2) AA Batteries

Safety Rating CAT III 1000V, CAT IV 600V

Special Features Power, Power Factor, Individual Harmonics, Low Pass Filter for Variable Frequency Drives, Flash Light for Determing Color of the Wires in the Dark

Temp. Range -50 Degrees to 1832 Degrees F (-50 Degrees to 1000 Degrees C)

Test Instrument Combination Digital Multimeter/Digital Clamp Meter

Thermometer Type K-type

True RMS Yes

Voltage Accuracy AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits
