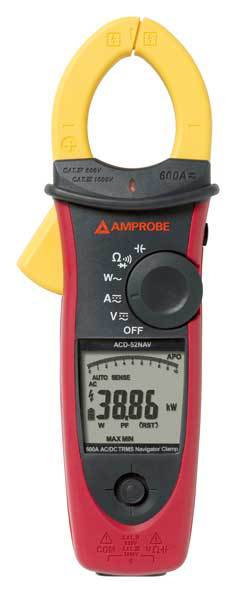

Home / Clamp-On Power Meter, LCD, 600 kW, 600 A, Cat IV 600V, Cat III 1000V Safety Rating

Clamp-On Power Meter, LCD, 600 kW, 600 A, Cat IV 600V, Cat III 1000V Safety Rating

SKU
Brand Amprobe
Categories
Description Clamp-On Power Meter, Basic AC Current Accuracy +/-1.50 Percent, Basic AC Voltage Accuracy +/-1.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.70 Percent, Batteries Included Yes, Battery Chemistry Alkaline, Battery Size AA, Battery Voltage 1,000V; 100V, Calibration Frequency 20 Hz to 10 KHz, Capacitance Measurement Accuracy +/-1.90 Percent, Counts 10,000, Display Type Backlit Digital Display, Frequency Measurement Accuracy +/-0.50 Percent
graingerSKU: 6NZH8, mscSKU: , zoro_no: G3699087, mongo_id: 65bbe75e3aaddbd5a908f077

Web Price

$674.99 / each

Qty

Product Details

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Basic AC Current Accuracy +/-1.50%

Basic AC Voltage Accuracy +/-1.00%

Basic DC Current Accuracy +/-1.50%

Basic DC Voltage Accuracy +/-0.70%

Batteries Included Yes

Battery Chemistry Alkaline

Battery Size AA

Battery Voltage 1,000V; 100V

Calibration Frequency 20 Hz to 10 KHz

Capacitance Measurement Accuracy +/-1.90%

Country of Origin (subject to change) Taiwan, Province of China

Counts 10,000

Current Accuracy +/-1.5% Rdg +5 Digits

Data Hold Yes

Diode Test No

Display LCD

Display Type Backlit Digital Display

Frequency Counter 20.0Hz to 10KHz

Frequency Measurement Accuracy +/-0.50%

Includes Carrying Case, Test Leads

Intrinsically Safe No

Jaw Opening 1.45 in

Manufacturers Warranty Length 1 yr

Max. AC Amps 600

Max. AC Volts 1,000

Max. DC Amps 600

Max. DC Volts 1,000

Max. Resistance 100 K Ohms

Max. Watts 600 kW

Maximum AC Current Measurement 600 A

Maximum AC Voltage Measurement 1,000 V

Maximum Capacitance Measurement 4 mF

Maximum DC Current Measurement 600 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 10 kHz

Maximum Operating Temperature 122 Degrees F

Maximum Power 600 kW

Maximum Resistance Measurement 100 kiloohm

Maximum Storage Temperature 50 Degrees F

Maximum Wattage 600 kW

Minimum AC Current Measurement 100 A

Minimum AC Voltage Measurement 100 V

Minimum Capacitance Measurement 400 uF

Minimum DC Current Measurement 100 A

Minimum DC Voltage Measurement 100 V

Minimum Frequency Measurement 20 Hz

Minimum Operating Temperature 32 Degrees F

Minimum Power 10 kW

Minimum Resistance Measurement 1 kiloohm

Minimum Storage Temperature -4 Degrees F

Minimum Wattage 10 kW

Non-Contact Voltage Detector Yes

Operating Temp. Range 32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C)

Package Quantity 1

Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance

Peak Capture Yes

Peak Hold Yes

Power Accuracy +/-2.5% Rdg +5 Digits

Power Factor -1.00 to 1.00

Power Measurement Accuracy +/-2.50%

Power Source AA Batteries

Resistance Measurement Accuracy +/-1.00%

Safety Rating CAT IV

Special Features Continuity Beeper Quickly Identifies Shorts and Opens, Inrush Current Measurement and Phase Rotation Indication for 3-Phase Motors, Low Pass Filter Allows Measurement of Voltage and Frequency of Variable Frequency Drives, Non-Contact Voltage Detection Enhances Safety

Temperature Measurement Accuracy +/-1.00%

True RMS Yes

Voltage Accuracy AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits

Wattage Measurement Accuracy +/-2.50%
