Home / Digital Multimeter, 750 Max. AC Volts, 1,000 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps

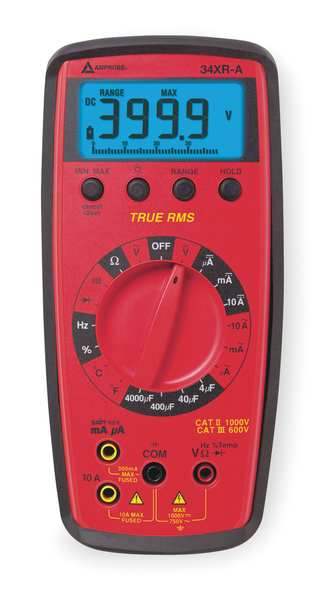

Digital Multimeter, 750 Max. AC Volts, 1,000 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps

SKU
Brand Amprobe
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (1.2 Percent rdg + 8 dgts), Basic DC Voltage Accuracy +/-0.50 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/- (1.0 Percent rdg + 1 dgt), Instrument Safety Rating CAT II 1000V, CAT III 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 3,999
graingerSKU: , mscSKU: , zoro_no: G2853252, mongo_id: 65bbe6243aaddbd5a900e2eb

Web Price

$353.74 / each

Qty

Product Details

AC Current Measurement Resolution 400 uA

AC Response TRMS

AC Response Calculation TRMS

AC Voltage Measurement Resolution 400 V

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/- (1.5 % rdg + 8 dgts)

Basic AC Voltage Accuracy +/- (1.2 % rdg + 8 dgts)

Basic DC Accuracy +/-0.50% of Reading + 1 Digit

Basic DC Current Accuracy +/- (1.0 % rdg + 1 dgt)

Basic DC Voltage Accuracy +/-0.50% + 1 Digit

Batteries Included Yes

Battery Access Yes

Battery Chemistry Alkaline

Battery Size 9V

Battery Type 9V Alkaline

Battery Voltage 9V

Bluetooth Compatible No

Calibration Certificate Not Included

Calibration Certificate Included No

Capacitance Measurement Accuracy +/- (5.0 % rdg + 5 dgts)

Capacitance Measurement Resolution 4 uF

Capacitance Range 4000 uF

Computer Interface Connection Type None

Country of Origin (subject to change) Taiwan, Province of China

Current Leakage Testing No

Data Hold Yes

Data Logging No

DC Current Measurement Resolution 400 uA

DC Voltage Measurement Resolution 400 V

Depth 2.4 in

Diode Test Yes

Display Backlit LCD

Display Type LCD

Dustproof No

Duty Cycle Yes

Frequency Measurement Accuracy +/- (0.1 % rdg + 3 dgts)

Frequency Measurement Resolution 4 kHz

Fuse Access Yes

Includes 9V Battery (Installed), Magne-Grip(TM) Holster with Magnetic Hanging Strap, Spare Fuse, Temperature Adapter, Test Leads with Threaded Alligator Clips, Type K Thermocouple Probe

Instrument Counts 3,999

Instrument Frequency Counter Range 1 Hz to 1 Mhz

Instrument Safety Rating CAT II 1000V, CAT III 600V

Intrinsically Safe No

Manufacturers Warranty Length 3 yr

Max. AC Amps 10

Max. AC Volts 750

Max. DC Amps 10

Max. DC Volts 1,000

Max. Ohms 40 megohm

Maximum AC Current Measurement 10 A

Maximum AC Voltage Measurement 1,000 V

Maximum Capacitance Measurement 4,000 uF

Maximum DC Current Measurement 10 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 1 MHz

Maximum Operating Temperature 122 Degrees F

Maximum Resistance Measurement 40 megaohm

Maximum Storage Temperature 140 Degrees F

Maximum Temperature Measurement 1,832 Degrees F

Min./Max. Memory yes

Minimum AC Current Measurement 400 uA

Minimum AC Voltage Measurement 400 V

Minimum Capacitance Measurement 4 uF

Minimum DC Current Measurement 400 uA

Minimum DC Voltage Measurement 400 V

Minimum Frequency Measurement 4 kHz

Minimum Operating Temperature 32 Degrees F

Minimum Resistance Measurement 400 ohm

Minimum Storage Temperature -4 Degrees F

Minimum Temperature Measurement -4 Degrees F

Minimum/Maximum Memory Yes

Multimeter Features Standard

Multimeter Style Full Size - Basic Features

Overall Height 7.7 in

Overall Width 3.6 in

Package Quantity 1

Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)

Removable Screen No

Resistance Measurement Accuracy +/-2%

Resistance Measurement Resolution 400 ohm

Series AMPROBE (R) 34XR-A

Special Features Auto Power Off to Save Battery Life, Autoranging, Display Update Rate: 2/sec, Nominal, Display: 3-3/4 Digit LCD, 3999 Counts with 41-Segment Analog Bar Graph, Magne-Grip(TM) Holster with Magnetic Hanging Strap, Min/Max, Data Hold and Range Lock, Operating Temperature: 0 Degrees C to 45 Degrees C at Less Than70% R.H, Overrange Indication, Separate Door for Easy Battery and Fuse Access, True-RMS Digital Multimeter with Temperature and Backlight

Standards cCSAus, OSHA, UL

Style Full Size

Temp. Range -4 Degrees to 1832 Degrees F

Temperature Measurement Accuracy -20 Degrees C to 10 Degrees C: +/- (2.0 % rdg + 4 Degrees C ) 10 Degrees C to 200 Degrees C: +/- (1.0 % rdg + 3 Degrees C ) 200 Degrees C to 1000 Degrees C: +/- (3.0 % rdg + 2 Degrees C ) -4 Degrees F to 50 Degrees F: +/- (2.0 % rdg + 8 Degrees F) 50 Degrees F to 400 Degrees F: +/- (1.0 % rdg + 6 Degrees F) 400 Degrees F to 1832 Degrees F: +/- (3.0 % rdg + 4 Degrees F)

Temperature Measurement Resolution 0 Degrees C

Thermal Imaging No

True RMS Bandwidth 2 kHz

Waterproof No

Weight 1 lb
