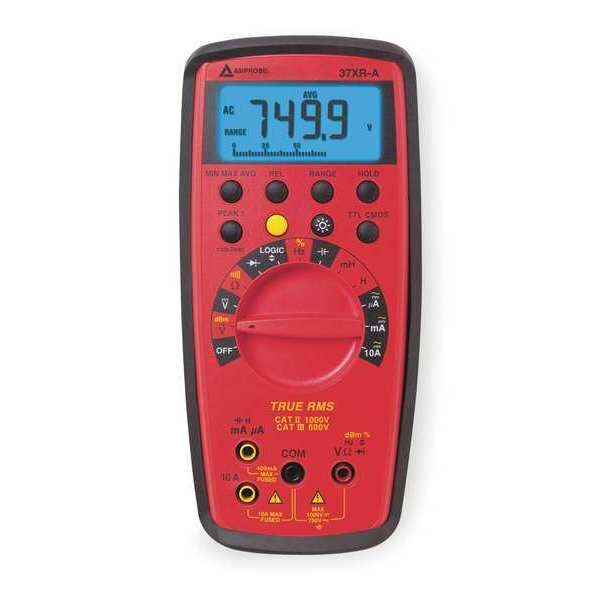

Digital Multimeter, 750 Max. AC Volts, 1,000 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps

SKU
Brand Amprobe
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (1.2 Percent rdg + 10 dgts), Basic DC Voltage Accuracy +/-0.50 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy +/- (0.5 Percent rdg + 5 dgts), Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 10,000
graingerSKU: 1WKP5, mscSKU: 75669648, zoro_no: G1156452, mongo_id: 65bbe7f522d7a989a98ccb72

Web Price

$422.49 / each

Qty

Product Details

AC Current Measurement Resolution 1 uA

AC Response TRMS

AC Response Calculation TRMS

AC Voltage Measurement Resolution 1 V

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/- (1.5 % rdg + 10 dgts)

Basic AC Voltage Accuracy +/- (1.2 % rdg + 10 dgts)

Basic DC Accuracy +/-0.50% of Reading +2 Digits

Basic DC Current Accuracy +/- (0.5 % rdg + 5 dgts)

Basic DC Voltage Accuracy +/-0.50% + 2 Digits

Batteries Included Yes

Battery Access Yes

Battery Chemistry Alkaline

Battery Size 9V

Battery Type 9V Alkaline

Battery Voltage 9V

Bluetooth Compatible No

Calibration Certificate Not Included

Calibration Certificate Included No

Capacitance Measurement Accuracy +/- (3.0 % rdg + 5 dgts)

Capacitance Measurement Resolution 40 nF

Capacitance Range 400 uF

Computer Interface Connection Type None

Country of Origin (subject to change) Taiwan, Province of China

Current Leakage Testing No

Data Hold Yes

Data Logging No

DC Current Measurement Resolution 1 uA

DC Voltage Measurement Resolution 1 V

Depth 2.4 in

Diode Test Yes

Display LCD

Display Type LCD

Dustproof No

Duty Cycle Yes

Frequency Measurement Accuracy +/- (0.1 % rdg + 5 dgts)

Frequency Measurement Resolution 100 Hz

Fuse Access Yes

Includes 9V Battery (Installed), Magne-Grip(TM) Holster with Magnetic Hanging Strap, Spare Fuse, Test Leads with Threaded Alligator Clips

Instrument Counts 10,000

Instrument Frequency Counter Range 0.01 Hz to 10 MHz

Instrument Safety Rating CAT III 600V

Intrinsically Safe No

Manufacturers Warranty Length 3 yr

Max. AC Amps 10

Max. AC Volts 750

Max. DC Amps 10

Max. DC Volts 1,000

Max. Ohms 40 megohm

Maximum AC Current Measurement 10 A

Maximum AC Voltage Measurement 1,000 V

Maximum Capacitance Measurement 400 uF

Maximum DC Current Measurement 10 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 10 MHz

Maximum Operating Temperature 113 Degrees F

Maximum Resistance Measurement 40 megaohm

Maximum Sound Level Measurement 50 dB

Maximum Storage Temperature 140 Degrees F

Maximum Temperature Measurement 113 Degrees F

Min./Max. Memory yes

Minimum AC Current Measurement 1 uA

Minimum AC Voltage Measurement 1 V

Minimum Capacitance Measurement 40 nF

Minimum DC Current Measurement 1 uA

Minimum DC Voltage Measurement 1 V

Minimum Frequency Measurement 100 Hz

Minimum Operating Temperature 32 Degrees F

Minimum Resistance Measurement 1,000 ohm

Minimum Storage Temperature -4 Degrees F

Minimum Temperature Measurement 32 Degrees F

Minimum/Maximum Memory Yes

Multimeter Features Standard

Multimeter Style Full Size - Basic Features

Overall Height 7.7 in

Overall Width 3.6 in

Package Quantity 1

Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance

Peak Hold Yes

Removable Screen No

Resistance Measurement Accuracy +/-2%

Resistance Measurement Resolution 1,000 ohm

Series AMPROBE (R) 37XR-A

Special Features 10 Amps AC/DC, Fully Safety Fused, Auto Power Off to Save Battery Life, Autoranging, Backlight, True-RMS with Component and Logic Test, Continuity Beeper, Display Update Rate: 2/sec, Nominal, Display: 4-3/4 Digit LCD, 10,000 Counts with 41-Segment Analog Bar Graph, Inductance to 40 H, Frequency to 40 MHz, Capacitance to 400 ÃÂ¿f, Logic to 20 MHz, Input Warning Tone When Test Leads are in Wrong Jack, Magne-Grip(TM) Holster with Magnetic Hanging Strap, Min/Max, Average, Relative, Peak and Data Hold, Operating Temperature: 0 Degrees C to 45 Degrees C at Less Than70% R.H, Power Battery: 9 V Neda 1604, JIS 006P, IEC 6F22, Separate Door for Easy Battery and Fuse Access

Standards cULus, IEC 6F22, JIS 006P, NEDA 1604

Style Full Size

Temp. Range 32 Degrees to 113 Degrees F

Temperature Measurement Accuracy Not Applicable

Temperature Measurement Resolution 0 Degrees C

Thermal Imaging No

True RMS Bandwidth 2 kHz

Waterproof No

Weight 1 lb
