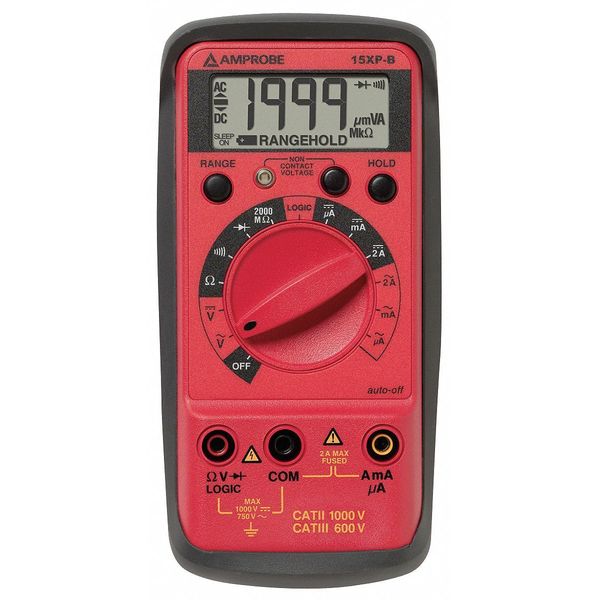

Digital Multimeter, 750 Max. AC Volts, 1,000 Max. DC Volts, 2 Max. AC Amps, 2 Max. DC Amps

SKU
Brand Amprobe
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/- (1.5 Percent rdg + 5 dgts), Basic DC Voltage Accuracy +/-0.50 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/- (1.0 Percent rdg + 2 dgt), Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 2,000
graingerSKU: 5NLK4, mscSKU: , zoro_no: G3486122, mongo_id: 65bbea4122d7a989a99a3f60

Web Price

$187.49 / each

Qty

Product Details

AC Current Measurement Resolution Not Applicable

AC Response Average

AC Response Calculation Average

AC Voltage Measurement Resolution Not Applicable

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Basic AC Current Accuracy +/- (1.5 % rdg + 5 dgts)

Basic AC Voltage Accuracy +/- (1.5 % rdg + 5 dgts)

Basic DC Accuracy +/-0.50% of Reading + 1 Digit

Basic DC Current Accuracy +/- (1.0 % rdg + 2 dgt)

Basic DC Voltage Accuracy +/-0.50% + 1 Digit

Batteries Included Yes

Battery Access Yes

Battery Chemistry Alkaline

Battery Size 9V

Battery Type 9V Alkaline

Battery Voltage 9V

Bluetooth Compatible No

Calibration Certificate Not Included

Calibration Certificate Included No

Capacitance Measurement Accuracy Not Applicable

Capacitance Measurement Resolution Not Applicable

Computer Interface Connection Type None

Country of Origin (subject to change) Taiwan, Province of China

Current Leakage Testing No

Data Hold Yes

Data Logging No

DC Current Measurement Resolution Not Applicable

DC Voltage Measurement Resolution Not Applicable

Depth 1.3 in

Diode Test Yes

Display Backlit LCD

Display Type Backlit LCD

Dustproof No

Frequency Measurement Accuracy Not Applicable

Frequency Measurement Resolution Not Applicable

Includes 9V Battery (Installed), Fuse 2 A/1000 V (P/N FP200), Magne-Grip(TM) Holster with Magnetic Hanging Strap, Pair of Test Leads (TL245A)

Instrument Counts 2,000

Instrument Safety Rating CAT III 600V

Intrinsically Safe No

Manufacturers Warranty Length 1 yr

Max. AC Amps 2

Max. AC Volts 750

Max. DC Amps 2

Max. DC Volts 1,000

Max. Ohms 2000 megohm

Maximum AC Current Measurement 2 A

Maximum AC Voltage Measurement 600 V

Maximum Capacitance Measurement Not Applicable

Maximum DC Current Measurement 2 A

Maximum DC Voltage Measurement 600 V

Maximum Frequency Measurement Not Applicable

Maximum Operating Temperature 122 Degrees F

Maximum Resistance Measurement 2,000 megaohm

Maximum Storage Temperature 140 Degrees F

Maximum Temperature Measurement 140 Degrees F

Minimum AC Current Measurement 200 uA

Minimum AC Voltage Measurement 200 V

Minimum Capacitance Measurement Not Applicable

Minimum DC Current Measurement 200 uA

Minimum DC Voltage Measurement 200 V

Minimum Frequency Measurement Not Applicable

Minimum Operating Temperature 32 Degrees F

Minimum Resistance Measurement 200 ohm

Minimum Storage Temperature -4 Degrees F

Minimum Temperature Measurement -4 Degrees F

Multimeter Features Standard

Multimeter Style Full Size - Basic Features

Overall Height 6.1 in

Overall Width 2.8 in

Package Quantity 1

Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance

Removable Screen No

Resistance Measurement Accuracy +/-5%

Resistance Measurement Resolution 200 megaohm

Series AMPROBE (R) 15XP-B

Special Features 600 V AC/600 V DC-Highest Voltage Rating in this Size of Meter, Autoranging Display for Faster Measurements, Data Hold Freezes Display to Hold Measurement Reading, Designed for Electronics Engineers, Technicians and Field Service, Diode Test for Component Level Troubleshooting, Integrated Tilt Stand for Easy Bench Use, Special 2000 megaohm Measurement Range, TTL Logic Test for Digital Circuits

Standards CE, N10140

Style Compact

Temp. Range -4 Degrees to 140 Degrees F

Temperature Measurement Accuracy Not Applicable

Thermal Imaging No

Waterproof No

Weight 7.4 oz
