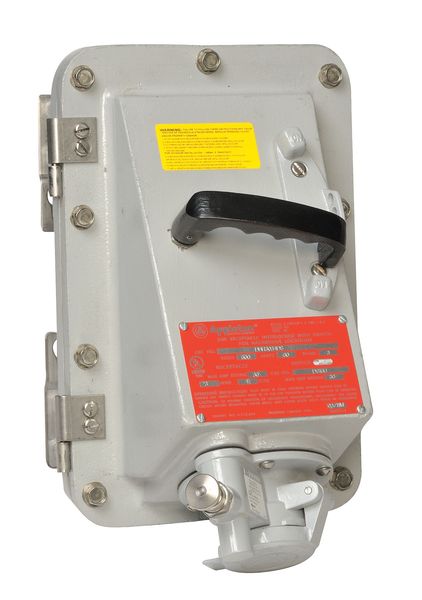

2W 3P 100A Hazardous Location Receptacle 600VAC

SKU
Brand Appleton Electric
Categories
Description Receptacle, Circuit Breaker Amp Rating 100 A, Circuit Breaker Type EHD 480V AC, Current Rating 100 A, Fuse Protection Not Applicable, Fuse Type Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Locking Handle Yes, NEMA Enclosure Rating 3, 3R, 4, 4X, 9FG, Number of Poles 3, Number of Wires 2, Voltage Rating 480V AC, Compatible Plug Manufacturer Part Number Not Applicable, Disconnect Switch No
graingerSKU: null, mscSKU: null, zoro_no: G3046928, mongo_id: 65bbe6a93aaddbd5a9045795

Web Price

$6,296.24 / each

Qty

Product Details

Amperage 30, 60, 100 or 150

Amps 100 A

Circuit Breaker Yes

Circuit Breaker Amp Rating 100 A

Circuit Breaker Type EHD 480V AC

Compatible Plug Manufacturer Part Number Not Applicable

Compatible with Series Powertite

Contact Material Brass

Country of Origin (subject to change) Mexico

Current Rating 100 A

Disconnect Switch No

Enclosure Lock Type Padlockable

Finish Epoxy Powder Coated

For Environment Hazardous Location

For Maximum Cable Diameter Not Applicable

For Minimum Cable Diameter Not Applicable

Fuse Protection Not Applicable

Fuse Type Not Applicable

Grounding Grounded

Handle Type Knob

Hazardous Area Classification EBR Receptacle: Class I, Division 1 and 2, Groups B, C, D Class II, Division 1 and 2, Groups F, G Class III NEMA 3, 3R, 4, 4X, 7CD, 9FG?DBR Receptacle: Class II, Division 1 and 2, Groups F, G Class III NEMA 3, 3R, 4, 4X, 9FG

Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2

Horsepower Rating 40 hp

Horsepower Ratings 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60 or 75

Housing Material Copper-Free Aluminum

Housing Material Finish Epoxy Powder Coated

Housing Material Type Metallic

HP_ 40 hp

Hub Diameter 1.5 in

Hub Type Feed Through

Includes Screw Cap

Includes Mounting Hardware Yes

Insulation Material Fiberglass-Reinforced Polyester

Locking Handle Yes

Material Copper-Free Aluminum

Materials and Finishes Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.

Maximum Wire Size Not Applicable

Mounting Box Copperfree Aluminum

Mounting Box Entries Feed-Thru

NEMA Enclosure Rating 3, 3R, 4, 4X, 9FG

NEMA Rating 3, 3R, 4, 4X, 9FG

Number of Gangs 1

Number of Poles 3

Number of Poles & Wires 3 Pole / 2 Wire

Number of Wires 2

Package Quantity 1

Plug Cable Diameter .500- 1.250 thru 1.09- 2.187 or .390- 1.375

Resistance Properties Waterproof
