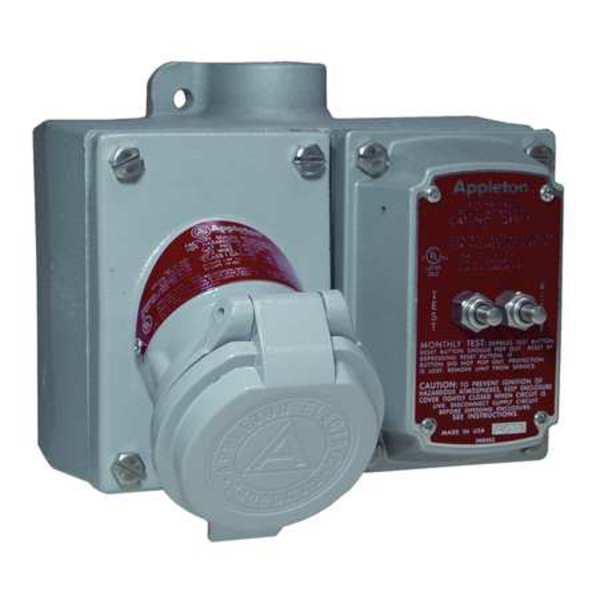

2W 3P 20A Hazardous Location GFI Cover 120 VAC 5-20R

SKU
Brand Appleton Electric
Categories
Description GFCI Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 1 hp, Housing Material Malleable Iron, Hub Type Feed Through, NEMA Enclosure Rating 3, 3R, 3RX, 7BCD, 9FG, NEMA Receptacle Configuration 5-20R, Number of Gangs 2, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof, Voltage Rating 125V AC
graingerSKU: 11Y383, mscSKU: , zoro_no: G3778297, mongo_id: 65bbe9c522d7a989a9976fa8

Web Price

$2,043.74 / each

Qty

Product Details

Amps 20 A

Circuit Breaker Yes

Country of Origin (subject to change) Mexico

Current Protection Type GFCI: Yes - Circuit Breaker: Yes

Current Rating 20 A

Features Factory-Sealed

Finish Baked Gray Epoxy Clad Finish

For Environment Hazardous Location

GFCI Yes

Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2

Horsepower Rating 1 hp

Housing Material Malleable Iron

Housing Material Finish Epoxy Powder Coated

Hub Diameter 1 in

Hub Size 1 in

Hub Style Feed-Thru

Hub Type Feed Through

Hz_ 60

Includes Mounting Hardware Yes

Material Malleable Iron

Mounting Box 2 Gang, Malleable Iron

Nameplate Mounting Bracket Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.

NEC Certifications and Compliances Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 7CD, 9EFG

NEMA Configuration 5-20

NEMA Enclosure Rating 3, 3R, 3RX, 7BCD, 9FG

NEMA Rating 3, 3R, 7BCD, 9EFG

NEMA Receptacle Configuration 5-20R

NEMA Type 5-20R

Number of Gangs 2

Number of Poles 3

Number of Wires 2

Option Materials 1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details

Package Quantity 1

Resistance Properties Dust Ignition Proof, Explosion Proof
