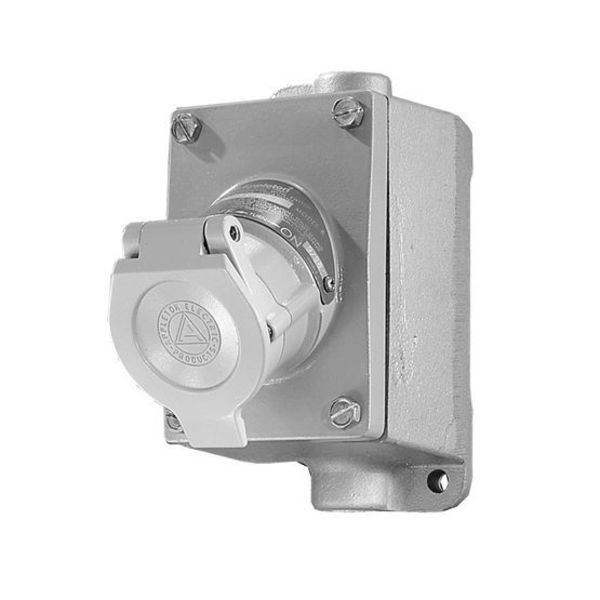

2W 3P 20A Hazardous Location Receptacle 120 VAC 5-20R

SKU
Brand Appleton Electric
Categories
Description Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 2, Group B, Horsepower Rating 1 hp, Housing Material Copper-Free Aluminum, Hub Type Feed Through, NEMA Enclosure Rating 3RX, 7CD, 9FG, NEMA Receptacle Configuration 5-20R, Number of Gangs Not Applicable, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof, Voltage Rating 120V AC
graingerSKU: 11Y402, mscSKU: , zoro_no: G5958373, mongo_id: 65bbe95522d7a989a994bc87

Web Price

$621.24 / each

Product Details

Aluminum Material and Finish Standard receptacle covers and (optional aluminum mounting boxes) are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat

Amperage 20

Amps 20 A

Circuit Breaker Yes

Country of Origin (subject to change) Mexico

Current Protection Type GFCI: Yes - Circuit Breaker: Yes

Current Rating 20 A

Features Dead Front Design: Receptacle is Not Energized Until Plug is Fully Inserted and Switch is Engaged

Finish Triple Coat Epoxy Coating

For Environment Hazardous Location

For Maximum Cable Diameter 0.639 in

For Minimum Cable Diameter 0.538 in

GFCI Yes

Hazardous Area Classification Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; NEMA 3RX, 7CD, 9FG

Hazardous Location Specification Class I, Div 2, Group B

Horsepower Rating 1 hp

Housing Material Copper-Free Aluminum

Housing Material Finish Chromate Finish; Epoxy Powder Coated; Zinc Electroplated

Hub Type Feed Through

Insulation Material Glass-Filled Reinforced Polyester

Insulator Block Material Glass-filled reinforced polyester

Malleable Iron Material and Finish Mounting boxes are malleable iron with a triple coat finish of (1) zinc electroplate (2) chromate and (3) epoxy powder coat

Material Copper-Free Aluminum

Mounting Box Entries Dead-End or Feed-Thru

NEMA Configuration 5-20

NEMA Enclosure Rating 3RX, 7CD, 9FG

NEMA Rating 3RX

NEMA Receptacle Configuration 5-20R

NEMA Type 5-20R

Number of Gangs Not Applicable

Number of Poles 3

Number of Wires 2

Package Quantity 1

Plug Cable Diameter .538- .639
